Industrial X-ray Inspection Machine C4016 For Small & Medium Packaging Products

Short Description:


Product Detail

Product Tags

Industrial X-ray Inspection Machine C4016 For Small & Medium Packaging Products

Features
●Using a fully sealed design to deal with humid environments
●Adopt double-layer thermal cycle technology to deal with high temperature environment
●Adopt anti-condensation design to cope with temperature difference environment
●Using Linux system to ensure stable operation and virus immunity
●The equipment adopts modular design
●Multiple product forms can be flexibly switched
●With networking function, software can be updated online
●System alarm function

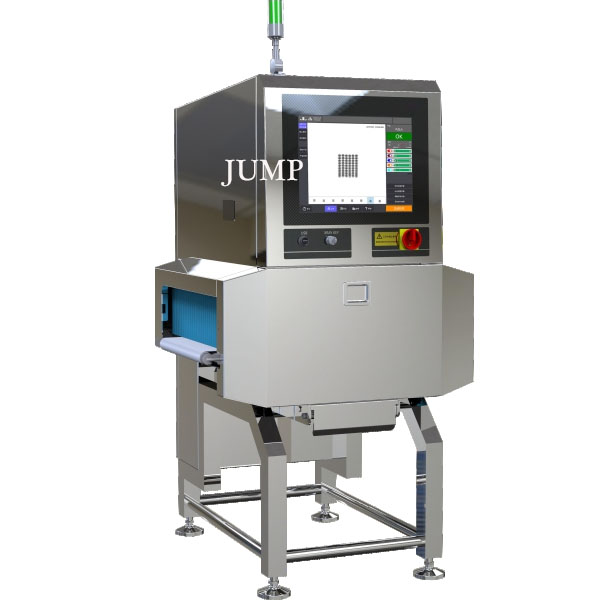

X-ray inspection machine C4016 for industry

X-ray source: 80kV, maximum power 210W
Detection accuracy: metal ball ¢0.3mm; metal wire ¢0.2x2mm; ceramic glass ball ¢1.0mm
Operating system: Linux
Human-computer interaction: 17-inch touch screen LCD display
Conveyor speed: 5-60m/min
Product weight to be inspected: up to 5kg
Product size to be inspected: maximum width 400mm, maximum height 160mm
Power supply: AC220V 50-60Hz
Temperature and humidity: ambient temperature 0-45℃, relative humidity 30-85% without frost
Waterproof rating: the conveyor is IP66, the rest is IP40
