1. smooth bucket structure against clamping fruits, suitable for tomato, strawberry, apple, pear, apricot, etc.
2. running stably with low noise, speed adjustable by transducer.
3. anticorrosive bearings, double sides seal.
Semi-automatic Jam Marmalade Liquid Filling Machine
Overview
Quick Details
- Machinery Capacity:
-
4000BPH
- Packaging Material:
-
plastic, metal, Glass
- Filling Material:
-
Beer
- Type:
-
Filling Machine
- Applicable Industries:
-
Machinery Repair Shops
- After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
- Local Service Location:
-
None
- Showroom Location:
-
None
- Condition:
-
New
- Application:
-
Food, Beverage, MEDICAL, Chemical, Machinery & Hardware
- Packaging Type:
-
Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Pouch, case
- Automatic Grade:
-
Semi-automatic
- Driven Type:
-
Electric
- Voltage:
-
220v
- Place of Origin:
-
Shanghai, China
- Brand Name:
-
JP
- Dimension(L*W*H):
-
90*30*60CM
- Weight:
-
30KG
- Certification:
-
ISO
- After-sales Service Provided:
-
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
- Warranty:
-
1 Year, 1 YEAR
- Key Selling Points:
-
Easy to Operate
- Marketing Type:
-
New Product 2020
- Machinery Test Report:
-
Provided
- Video outgoing-inspection:
-
Provided
- Warranty of core components:
-
5 years
- Core Components:
-
Motor, Pressure vessel, Pump, PLC, Gear, Bearing, Gearbox, Engine
- Product name:
-
semi automatic marmalade jam filling machine
- Capacity:
-
15-20 Bottles/min
- Keywords:
-
marmalade filling machine
- Filling material:
-
jam, puree, paste
- Filling volume:
-
0-1L
- Bottle type:
-
Round Bottle
- Material:
-
304 SUS
- Function:
-
Filling
Supply Ability
- Supply Ability:
- 1000 Set/Sets per Year
Packaging & Delivery
- Packaging Details
- wooden case / carton
- Port
- Shanghai
- Lead Time :
-
Quantity(Sets) 1 – 1 >1 Est. Time(days) 7 To be negotiated
Product Description

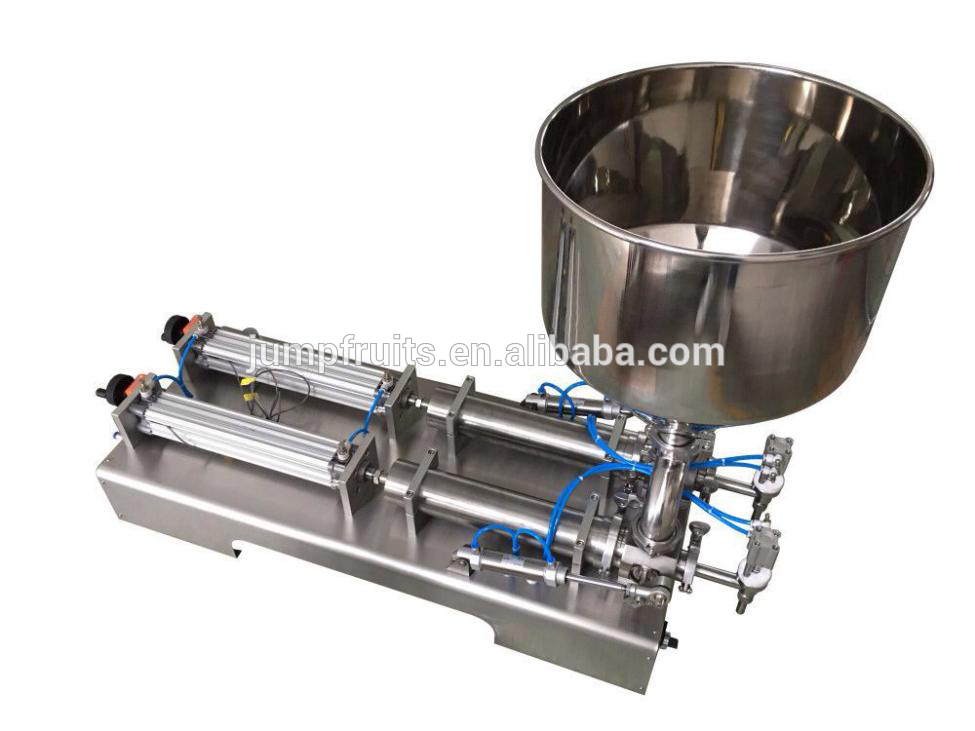

Semi automatic jam marmalade jam filling machine
This model machine is suitable for high viscosity,Paste,Thick sauce with particles. Also used for liquid products,Jams,Sauces,Peanut butter,Ketchup and so on.
|
Model
|
G2WGD-2800
|
|
Power
|
Electric& Pneumatic 40W
|
|
Air Pressure
|
0.5-0.7Mpa
|
|
Machine Material
|
SS304&PTFE O-Rings
|
|
Cylinder Brand
|
SMC-Japan
|
|
Filling Volume Range
|
500ML-5L
|
|
Filling Speed
|
10-30 Bottles/min
|
|
Filling accuracy
|
≤±0.2%
|
|
Machine Size
|
1200*380*450mm500*500*400mm
|
|
Machine Weight
|
70KG
|
|
Delivery Time
|
7 DAYS
|
Main products
|
Our Main Business Products
|
||
|
1
|
Tomato paste / puree / jam / concentrate, ketchup, chilli sauce , other fruit & vegetables sauce / jam processing line
|
|
|
2
|
Fruit & vegetables ( orange , guava, cirtrus, grape, pinapple, cherry, mango, apricot.etc. ) juice and pulp processing line
|
|
|
3
|
Pure, mineral water, Mixed beverage, drink (soda, Cola, Sprite, carbonated beverage, no gas fruit drink, herbal blend drink, beer,cider, fruit wine .etc. ) production line
|
|
|
4
|
Canned fruit & vegetables ( tomato, cherry, beans, mushuroom, yellow peach, olives, cucumber, pineapple, mango, chili, pickles and so on. ) production line
|
|
|
5
|
Dried fruit & vegetables ( dried mango, apricot, pineapple, raisin, blueberry .etc. ) production line
|
|
|
6
|
Dairy (UHT milk, pasteurized milk, cheese, butter, yogurt, milk powder, margarine, ice cream)production line
|
|
|
7
|
Fruit and vegetable powder (Tomato, pumpkin, cassava powder, strawberry powder, blueberry powder, bean powder, etc. ) production line
|
|
|
8
|
Leisure snack (Dried freeze-dried fruit, puffed food, french fried potato chips, etc. ) production line
|
|
Key machine describe
Bucket Elevator
Air Blowing & Washing Machine
1 Used to wash fresh tomato, strawberry, mango, etc.
2 Special design of surfing and bubbling to ensure a through cleaning and lessening the damage to the fruit as well.
3 Suitable for many kinds of fruit or vegetables, such as tomatoes, strawberry, apple,mango,etc.
Peeling, pulping & Refining Monobloc (Pulper)
1. The unit can peel, pulp and refine fruits together.
2. The aperture of strainer screen can be adjustable (change) based on customer’s requirement.
3. Incorporated Italian technology, high quality stainless steel material in contact with fruit material.
Belt press extractor
1. Widely used in extracting and dehydrating of many kinds of acinus, pip fruits, and vegetables.
2. the unit adopt advanced technology, big press and high efficiency, high degree of automatic, easy to operate and maintains.
3. the extraction rate can be get 75-85%(based on raw material)
4. low investment and high efficiency
Preheater
1. To inactivate enzyme and protect color of paste.
2. Auto temperature control and the out temperature are adjustable.
3. Multi-tubular structure with end cover
4. If the effect of preheat and extinguish enzyme failed or not enough, the product flow return to tube again automatically.
Evaporator
1. Adjustable and controllable direct contact heat treatment units.
2. Shortest possible residence time, presence of a thin film along the entire length of the tubes reduces holdup and residence time.
3. Special design of liquid distribution systems to ensure correct tube coverage. The feed enters at the top of the calandria where a distributor ensures film formation on the inside surface of each tube.
4. The vapor flow is co-current to the liquid and the vapor drag improves the heat transfer. The vapor and the remaining liquid are separated in a cyclone separator.
5. Efficient design of separators.
6. Multiple effect arrangement provides steam economy.
Tube in tube sterilizer
1. The united is consisted of product receiving tank, superheated water tank, pumps, product dual filter, tubular superheated water generate system, tube in tube heat exchanger, PLC control system, Control cabinet, steam inlet system, valves and sensors, etc.
2. Incorporated Italian technology and conform to Euro-standard
3. Great heat exchange area, low energy consumption and easy maintenance
4. Adopt mirror welding tech and keep the smooth pipe joint
5. Auto backtrack if not enough sterilization
6. CIP and auto SIP available together with aseptic filler
7. Liquid level and temp controlled on real time
