BIB Filler Sealer For Pure Water Beverage Juice Cream Automatic Bag-in-Box Filling Sealing Machine

Short Description:


Product Detail

Product Tags

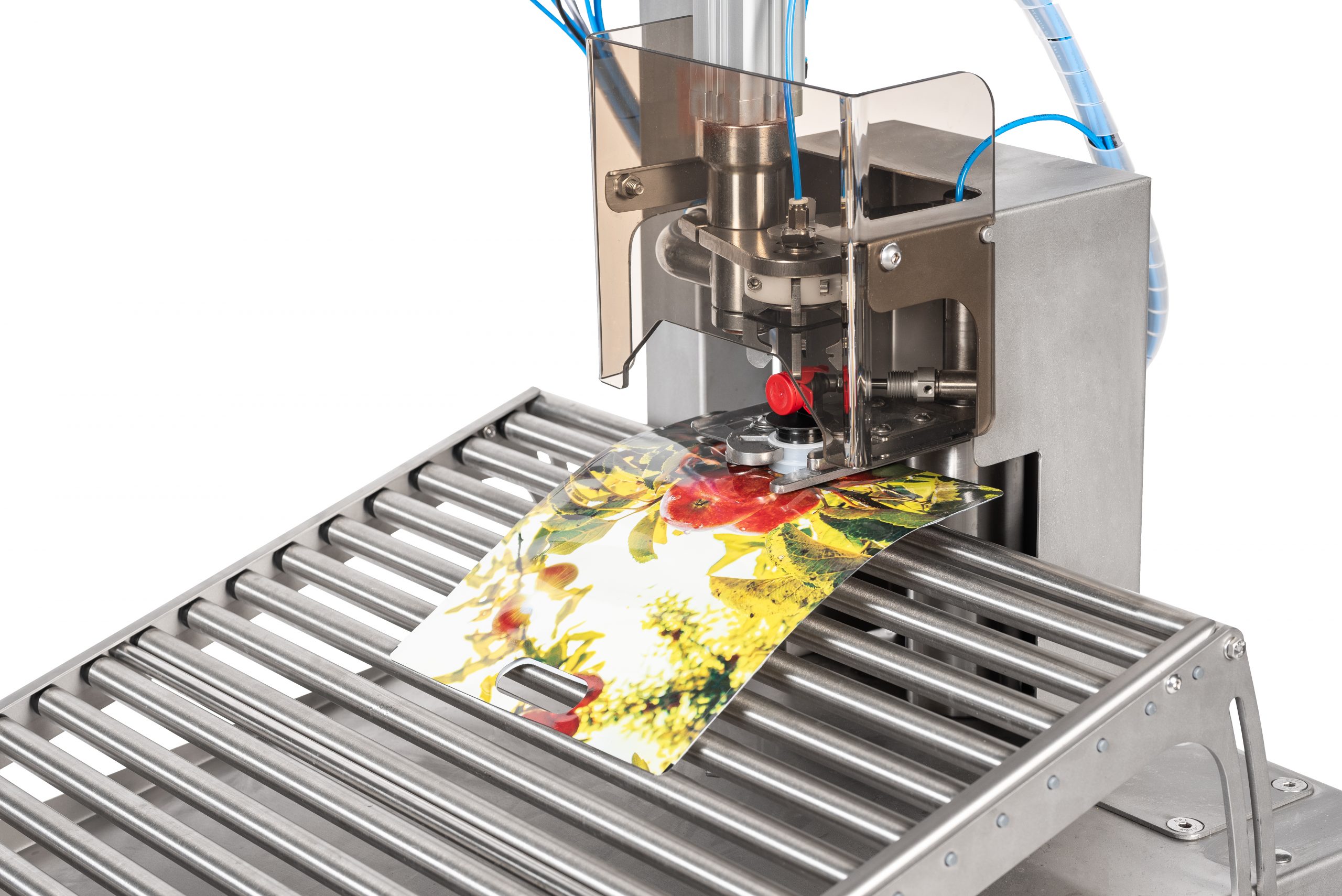

Automatic Bag-in-Box Filling Sealing Machine BIB Filler Seale

This series of models is designed and manufactured by our company for the filling and capping of flexible packaging of bag-in-box. It adopts high-precision flow meter measurement method, which has high filling accuracy and convenient setting and adjustment of filling volume; The design of this machine is scientific and reasonable, and the degree of automation is high. The main electrical components adopt well-known brands at home and abroad to ensure the stability of equipment operation; it is widely used in various easy-flowing liquid boxes in food and beverage, wine, medicine, biochemical and other industries. Automatic filling and capping of liquids in bags.



The main performance characteristics of the equipment and the use of materials:
1. The machine is mainly made of high-quality stainless steel, and the parts in contact with the material are made of 304# stainless steel and food-grade plastic, which is beautiful, clean and hygienic, and meets the requirements of food hygiene;
2. The main pneumatic components of the equipment are made of Taiwan AirTAC products, PLC and touch screen are made of Siemens products of Germany, and other electrical components are mainly made of domestic and foreign famous brand products such as Japan’s Omron, with stable and reliable performance. Convenience;
3. The machine is controlled by a high-precision flowmeter, the measurement is accurate, and the filling accuracy can reach ±0.2%;
4. The filling area of the machine is equipped with a laminar flow hood, which can be connected to an external clean air source to achieve clean filling in the filling area;
5. The equipment is controlled by PLC combined with human-machine interface (touch screen), with friendly interface, intuitive and fast parameter adjustment and modification, and convenient operation;
6. This machine can realize CIP cleaning and recycling functions, no dead corners in cleaning, airtight cleaning process, no cleaning water leakage, overflow products and cleaning water collection tank at the bottom of the equipment;
7. The whole machine has high waterproof performance, the electric control box is specially made, and the waterproof performance is superior;
8. The bag-in-box used by this machine is a conjoined bag, which can realize automatic bag feeding, automatic positioning to the filling station, and can automatically complete the whole process of bag feeding, filling, capping, bag discharging, bag cutting, and filling. It is automatically completed at the same station as the gland, with a high degree of automation;



The specific workflow is:
Start switch→automatic bag feeding→automatic capping→automatic filling→automatic capping→automatic bag feeding→automatic bag cutting→(packing) subsequent packaging

bib filling sealing
