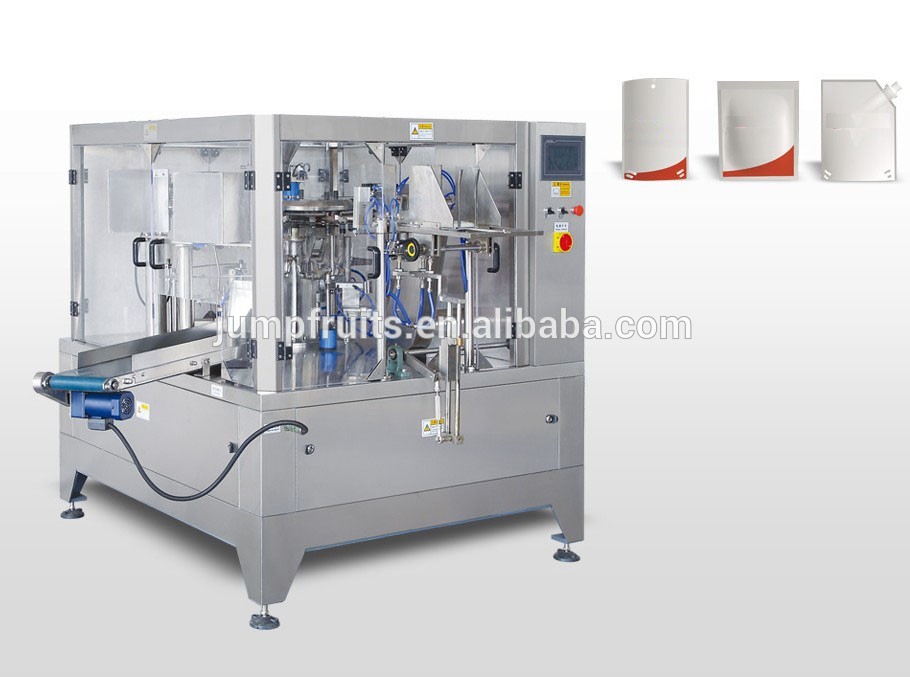

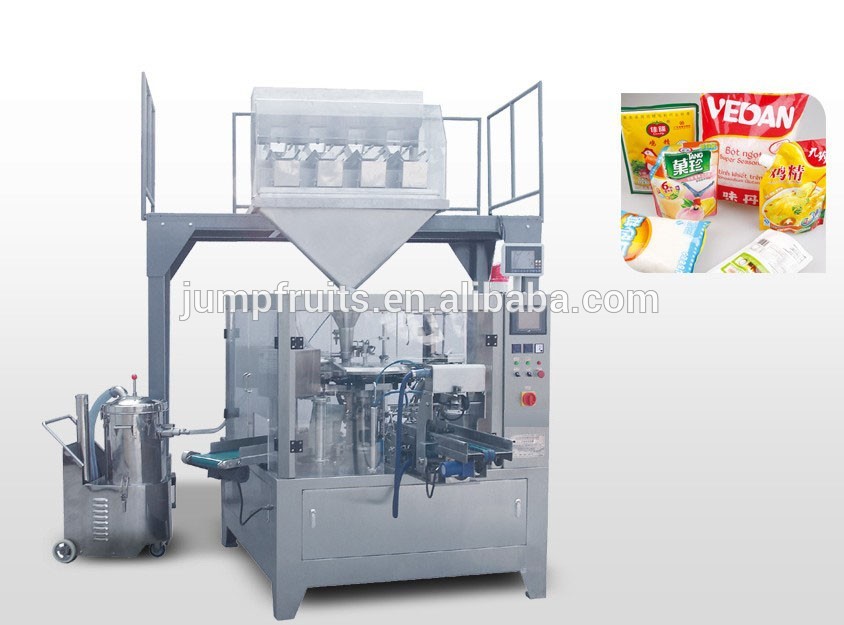

Detailed Image

Performance characteristics

1,Easy to operate: PLC control, human-machine interface2,Frequency conversion speed regulation: Using frequency adjustment device, you can adjust the speed within the specified range3,Bag width adjustment is convenient: it is controlled by the motor and can be adjusted synchronously with only one button

4,Adopt oil-free vacuum pump to avoid pollution of production environment

5,The parts in contact with the materials are all made of 304 stainless steel and meet food hygiene standards.

6,Easy to clean: machine table can be washed

Product Description

Main technical parameters:
1,Seal form: back seal

2,Measurement range: 20~2000 grams / package (depending on the material characteristics)

3,Speed: 20-50 packets / points

4,Bag size: long: 50 to 320mm

5,Width: 60 to 200mm

6,Input power supply: 220V/50HZ single-phase

7,Total power: 3.7KW

8,Whole machine weight: 450KG

9,Outer size: 1500x950x1450 (long x wide x high mm)

10,Packaging materials: POPP/CPP, POPP/VMCPP, CPP/PE and other composite materials, such as paper, glass, paper, aluminum foil polyester film

11,It is made of composite high pressure polyethylene coated with the base material. The requirements of circular flat, diameter less than or equal to 360 mm, the skeleton diameter =75 mm, width less than or equal to 420 mm film.

12,Environment: temperature -5 C ~ 45 C, can not freeze; relative humidity 30-85%, no dew.

13,Power source: compressed air (without water after filtration) 0.6 * 105Pa

14,Total gas consumption: 350L/min

Whole Line

C. Crusher

Fusing Italian technology, multiple sets of cross-blade structure, crusher size can be adjusted according to customer or specific project requirements, it will increase the juice juice rate of 2-3% relative to the traditional structure , which is suitable for production of onion sauce, carrot sauce, pepper sauce , apple sauce and other fruits and vegetables sauce and products

D. Double-stage pulping machine

It have tapered mesh structure and the gap with load can be adjusted, frequency control, so that the juice will be cleaner; Internal mesh aperture are based on customer or specific project requirements to order

E. Evaporator

Single-effect, double-effect,triple-effect and multi-effect evaporator, which will save more energy; Under vacuum, continuous low temperature cycle heating to maximize the protection of nutrients in the material as well as the originals. There are steam recovery system and double times condensate system, it can reduce the consumption of steam;

F. Sterilization machine

Having obtained nine ed technology, take full advantages of the material’s own heat exchange to save energy– about 40%

F. Filling machine

Adopt Italian technology, sub-head and double-headed, continuous filling, reduce return; Using steam injection to sterilize, to ensure filling in aseptic state , the shelf life of product will twp years at room temperature ; In the filling process,using turntable lifting mode to avoid secondary pollution.
