China Small Manual Paste / Cream / Lotion / Liquid Filling Machine factory and manufacturers

Small Manual Paste / Cream / Lotion / Liquid Filling Machine

Short Description:

Send email to us Download as PDF

Product Detail

Product Tags

Overview

Quick Details

Packaging Material:: Glass, metal, plastic

Type:: Filling Machine

Condition:: New

Application:: Beverage, Chemical, Food, Machinery & Hardware, MEDICAL

Packaging Type:: Bottles

Automatic Grade:: Manual

Driven Type:: Manual

Voltage:: 220V

Power:: 0.75KW

Place of Origin:: Shanghai, China

Brand Name:: JUMPFRUITS

Model Number:: JP-MFA03

Dimension(L*W*H):: 300*400*1200MM

Weight:: 30kg

Certification:: ISO9001

After-sales Service Provided:: Engineers available to service machinery overseas

Product name:: Small Manual Paste / cream / lotion / oil / liquid filling machine

Function:: Filling

Name:: Manual Liquid Filling Machine

Filling material:: Flowing Liquid

Usage:: Plastic Packaging

Processing Types:: Normal Pressure Filling

Material:: SUS304

Bottle type:: Round Bottle

Warranty:: One Year

Capacity:: 0-20 bottles/ min (5-50ml/bottle)

Supply Ability

Supply Ability:: 50 Set/Sets per Month Manual Liquid Filling Machine

Packaging & Delivery

Packaging Details: Carton

Port: Shanghai

Lead Time :: 5 days after receiving the payment

Product Description

Manual / semi-automatic paste / oil / cream / lotion / liquid filling machine

Main Specification

1. This manual / semi-automatic paste / oil / cream / lotion / liquid filling machine series application to food, medicine, cosmetic,oil, such as paste,sauce,liquid,cream filling

2. The hopper of manual paste filling machine also can be install mixing or heating functions for meet the customere prduction requests.

3. The unique vertical design, save the space of the share.

Main Parameters

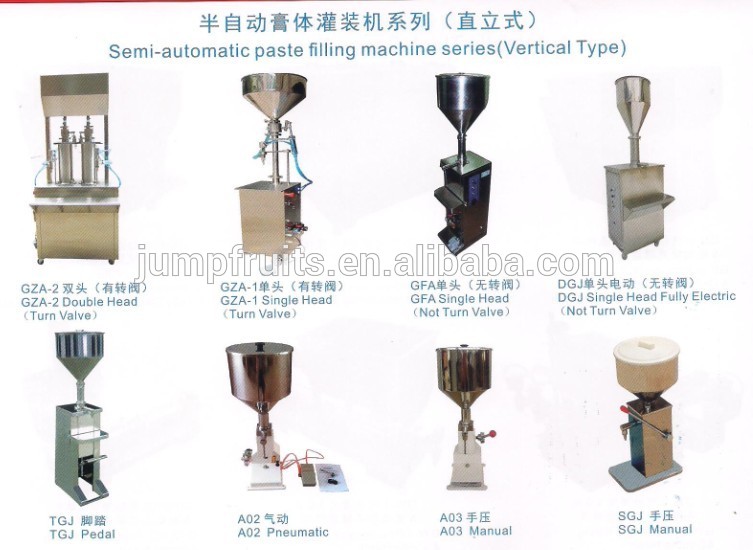

Item	GZA-2	GZA-1	GFA	DGJ	TGJ	A02	A03	SGJ
Filling speed(bottles/min)	0-80	0-40	0-40	0-30	0-20	0-40	0-20	0-20
Filling accuracy	±1%
Power supply	220V 50hz			220V 50hz
Air pressure	0.6-0.8Mpa					0.6-0.8Mpa
Power	100W			500W
Hopper Cubage	80L	40L	30L	30L	30L	15L	15L	15L
Filling range	5-100ml,20-300ml,50-500ml,100-1000ml,300-2000ml,500-3000ml,1000-5000ml		5-100ml,30-300ml,50-500ml,100-1000ml		10-150ml,20-280ml	5-50ml

Main products

Our Main business producs
1	tomato paste / puree / jam / concentrate, ketchup, chilli sauce , other fruit & vegetables sauce / jam processing line
2	Fruit & vegetables ( orange , guava, cirtrus, grape, pinapple, cherry, mango, apricot.etc. ) juice and pulp processing line
3	Pure, mineral water, Mixed beverage, drink (soda, Cola, Sprite, carbonated beverage, no gas fruit drink, herbal blend drink, beer,cider, fruit wine .etc. ) production line
4	Canned fruit & vegetables ( tomato, cherry, beans, mushuroom, yellow peach, olives, cucumber, pineapple, mango, chili, pickles and so on. ) production line
5	Dried fruit & vegetables ( dried mango, apricot, pineapple, raisin, blueberry .etc. ) production line
6	Dairy （UHT milk, pasteurized milk, cheese, butter, yogurt, milk powder, margarine, ice cream）production line
7	Fruit and vegetable powder (Tomato, pumpkin, cassava powder, strawberry powder, blueberry powder, bean powder, etc. ) production line
8	Leisure snack (Dried freeze-dried fruit, puffed food, french fried potato chips, etc. ) production line
