| Quantity(Sets) | 1 – 1 | >1 |
| Est. Time(days) | 30 | To be negotiated |

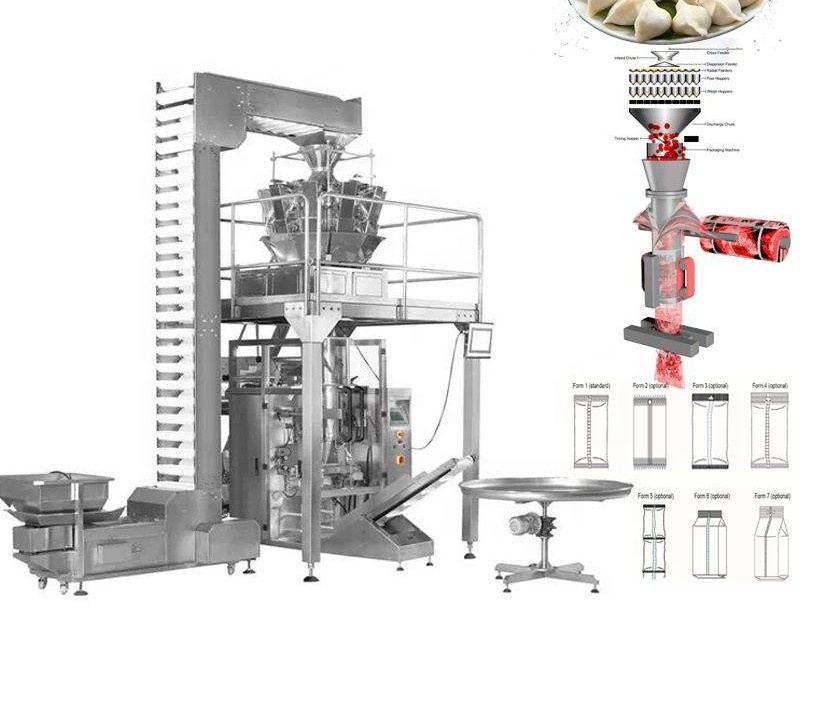

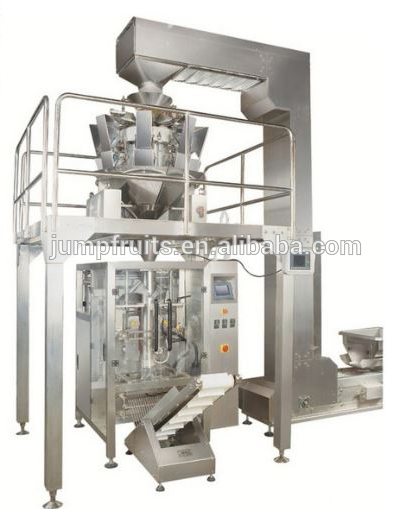

Automatic Measuring, Bag Making, Filling, Sealing, Cutting, Printing Production Date, And Easy Cut Etc.
Function Be able to weight, fill, make the bag, print manufacture date and expiry date and batch number, seal, make valve, cut off ,count, convey automatically
The machine is suitable for seed, manure, salt, sugar ,rice, sand ,grain, spice, and any small granule like rice.
Parameters:
|
Machine speed
|
30-60bags/minute
|
|
Bag Size Range
|
Max bag length 250mm, max bag width 150mm(one machine is with one set of bag former only)
|
|
Weigher for granule
|
10 heads electronic weigher
|
|
Bag type
|
Pillow Bag or Gusset Pillow Bag
|
|
Volume Cup range
|
150g-500g (different width use different bag former, length able adjust)
|
|
Maximum film width for packing machine
|
320mm
|
|
Film Material
|
For Sachet Laminated paper film, Pure Aluminum film(Foil), Pe+Paper, PE Film
|
|
Voltage
|
phase 220V 50-60Hz
|
|
Total Power
|
2.5KW
|
|
Machine size
|
1630*1100*1550mm
|
|
Control System
|
PLC Control System ,Touch Screen Two kinds of language
|
|
Measuring Mode
|
Electronic scale
|
*Put the machine onto bottom iron support
*Bind foot stool with iron bar on the bottom support by iron wire tightly.
*Use PE film to Shrink the machine well
*Wrapped the wooden case with metal frame
*Pack the complete machine into container by forklift truck.
*Deliver them by sea or by air
*30sets/20 feet Container
