Semi-automatic Carrot Juice Making Machine

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Packaging Material:
wood
Type:
Filling Machine
Condition:
New
Application:
Beverage, Food, Machinery & Hardware, MEDICAL
Packaging Type:
case
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380V 50Hz
Power:
4KW
Place of Origin:
Shanghai, China
Brand Name:
JUMPFRUITS
Model Number:
JPF-GZ-1119
Dimension(L*W*H):
2200X800X1600MM
Weight:
800kg
Certification:
ISO,CE
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
carrot juice making machine
Name:
Automatic Liquid Filling Machine
Function:
aseptic bag aseptic filling
Material:
SUS304/316
Processing Types:
Normal Pressure Filling
Bottle type:
PET Plastic Bottle
Filling material:
Flowing Liquid
Usage:
Beverage Packaging
Warranty:
Life Long Maintenance
Capacity:
1000-30000bph
Supply Ability:
10 Set/Sets per Week carrot juice making machine
Packaging Details
Stable wooden package protects machine from strike and damage. Wound plastic film keeps machine out of damp and corrosion.Fumigation-free package helps the smooth customs clearance.The big size machine will be fixed in container without package.
Port
Shanghai port
Lead Time :
3-7 days when machine in stock,30 days for customize machine
Product Description

 Product Application:

 This line suits for carrots, pumpkin processing. The final products types can be clear juice, cloudy juice, juice concentrate and fermented beverages; It can also produce pumpkin powder and carrot powder. The production line consists of washing machines, elevators, blanching machine, cut machine, crusher, pre-heater, beater, sterilization, filling machines, three-way four-stage evaporator and spray drying tower, filling and labeling  machine etc. The production line adopts advanced design and high degree of automation. The main equipments are manufactured by high-quality stainless steel and in full compliance with food processing hygiene requirements.



Product Advantages:
Processing capacity : 3 tons to 1,500 tons / day.

* Raw Material: carrots, pumpkins,date,apple,orange,tomatoes

* Final product: clear juice, cloudy juice, juice concentrate and fermented beverages

* To prevent browning by blanching

* Aging the soft tissue to increase juice yield

* Can get different tastes by dilution.

* High degree of automation of the entire line, without using a lot of manpower.

* Comes with cleaning system, easy to clean.

* System Material contact parts are 304 stainless steel, in full compliance with food hygiene and safety requirements.

Whatsapp/Line/Wechat/Mobile: 008613681836263  Welcome any inquiry!

Main Features

we take advantages of the comprehensive and technical cooperation with the Italian company partner, now in fruit processing, cold breaking processing, multi effect energy saving concentrated, sleeve type sterilization and aseptic big bag canning has made domestic and unmatched technical superiority. We can provide the entire production line processing 500KG-1500 tons of raw fruit daily according to the customers.

Turnkey solution. No need worry if you know little about how to carry out the plant in your country.We not only offer the equipment to you,but also provide one-stop service, from your warehouse designing (water, electricity ,staff) , worker training, machine installation and debugging, life-long after-sale service etc.

Our company adheres to the purpose of “Quality and Service Branding”, after many years of efforts, has set a good image in the domestic ,due to superior price, and excellent service , at the same time, the company products are also widely infiltrated into Southeast Asia, Middle East, Africa, South America, Europe and many other overseas markets.

Whole Line
A. Scraper-type spray elevator

Select stainless steel bracket, food-grade and hard plastic or stainless steel scraper, smoothing blade architecture to prevent the fruit jam; Using imported anti-corrosion bearings, double-sided seal; with continuously variable transmission motor, variable frequency Speed and low operating costsTitle goes here.

B. Sorting  machine

Stainless steel roller conveyor, rotation and solution, a full range of check, no need ends. Manmade fruit platform, painted carbon steel bracket,stainless steel antiskid pedal,stainless steel fence.

C. Crusher

Fusing Italian technology, multiple sets of cross-blade structure, crusher size can be adjusted according to customer or specific project requirements, it will increase the juice juice rate of 2-3% relative to the traditional structure , which is suitable for production of onion sauce, carrot sauce, pepper sauce , apple sauce and other fruits and vegetables sauce and products

D. Double-stage pulping machine

It have tapered mesh structure and the gap with load can be adjusted, frequency control, so that the juice will be cleaner; Internal mesh aperture are based on customer or specific project requirements to order

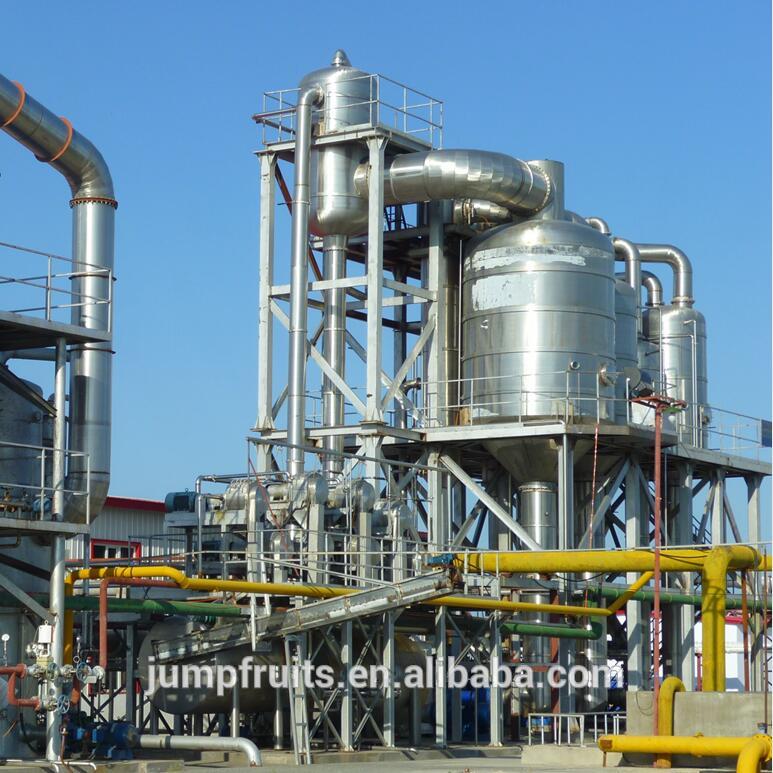

E. Evaporator

Single-effect, double-effect,triple-effect and multi-effect evaporator, which will save more energy; Under vacuum, continuous low temperature cycle heating to maximize the protection of nutrients in the material as well as the originals. There are steam recovery system and double times condensate system, it can reduce the consumption of steam;

F. Sterilization machine

Having obtained nine ed technology, take full advantages of the material’s own heat exchange to save energy– about 40%

F. Filling machine

Adopt Italian technology, sub-head and double-headed, continuous filling, reduce return; Using steam injection to sterilize, to ensure filling in aseptic state , the shelf life of product will twp years at room temperature ; In the filling process,using turntable lifting mode to avoid secondary pollution.
