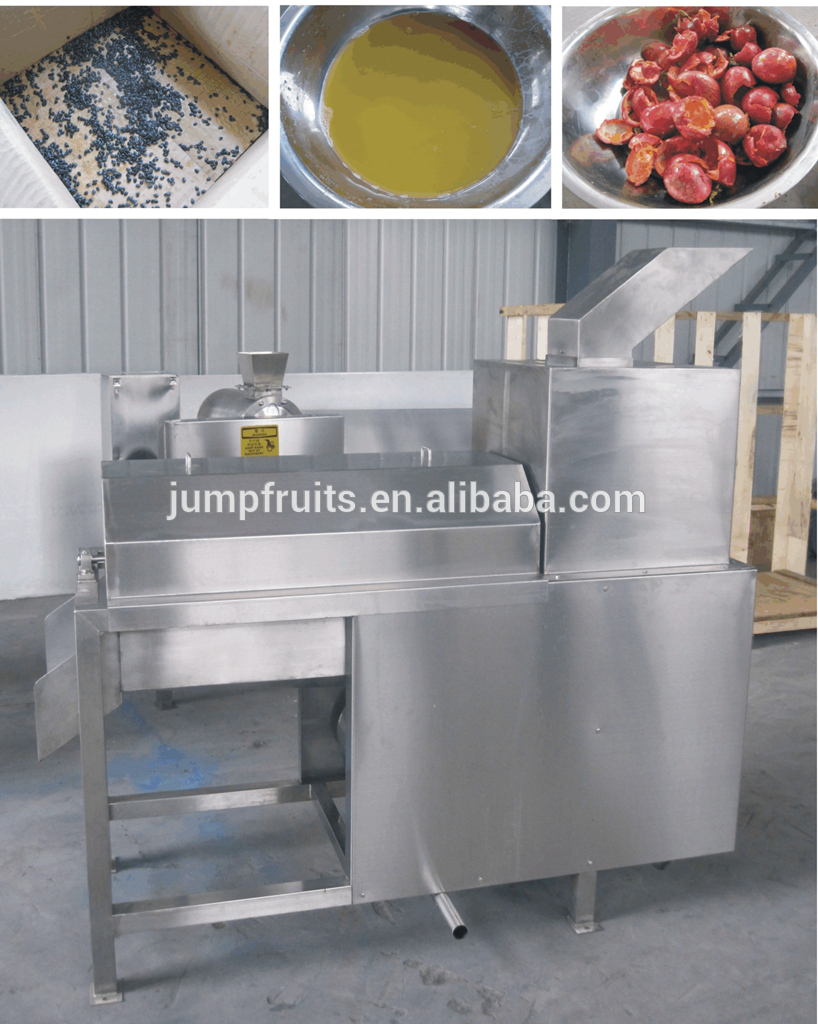

Passion fruit / maracuja / passionflower juice extraction machine

JP-GZJ-1 passion fruit juicer price: 72000 / set

Processing ability: 0.8 T / H;

Power: 2.2 KW;

Shape size: 1900 × 850 × 2260mm;

This equipment is our company digests and absorbs the foreign advanced technology to develop successfully the passionflower (100 fragrant fruit) the special juicer equipment, in presses the passionflower

At the same time, the pulp of the passionflower is separated from the seed, and the pericarp of the single passionflower is obtained, and the seed of the single passion fruit is obtained. Therefore, this equipment is not only a passion fruit (100) juicer, but also a passion fruit (100 fruit) peeling machine and passion fruit (100 passion fruit) seed machine;

Structure characteristics and working principle: this machine is mainly composed of feed hopper, crusher, separating cylinder, seed dividing barrel, transmission system, frame and so on. Work

The material is first broken by the crusher, then into the separator to separate the skin, the juice meat and the seed are brought into the seed container, and then the seed and the juice meat are separated, so as to achieve the purpose of three kinds of separation.

The equipment is made of stainless steel except the transmission part.
