Turnkey Project Tomato Paste Production Line

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
OEM
Model Number:
JUMP-FQJL
Type:
tomato paste production line
Voltage:
220V/380V
Power:
5.5kw
Weight:
80 TONS
Dimension(L*W*H):
1380*1200*2000mm
Certification:
ISO 9001,CE
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
tomato sauce production line
Material:
304 Stainless Steel
Function:
Multifunctional
Usage:
Industrial Usage
Capacity:
0.5-20t/h
Color:
Silver or customized
Item:
tomato puree production line
Feature:
Turn Key Project
Supply Ability
Supply Ability:
3 Set/Sets per Month tomato paste production line
Packaging & Delivery
Packaging Details
1.Stable wooden package protects machine from strike and damage. 2.Wound plastic film keeps machine out of damp and corrosion.3.Fumigation-free package helps the smooth customs clearance.4.The big size machine will be fixed in container without package.
Product Description

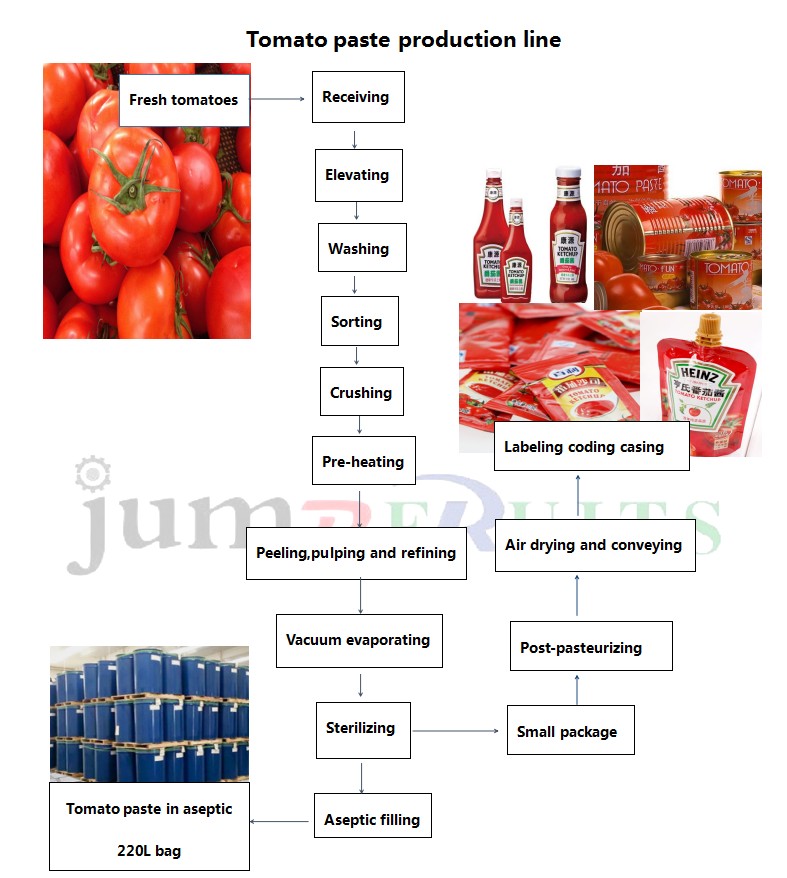

TOMATO PASTE PRODUCTION LINE


1. Packing: 5-220L aseptic drums, tin cans, plastic bags, glass bottles and so on2.The whole line composition:

A: promotion system of the original fruits, cleaning system, sorting system, crushing system, pre-heating sterilization system, pulping system, vacuum concentration system, sterilization system, aseptic bag filling system

B: pump → blending drum → homogenization →deaerating → sterilization machine → washing machine → filling machine → capping machine → tunnel spray sterilizer → dryer → coding → boxing

3. The final product concentration: Brix 28-30%, 30-32% cold broken and heat broken, 36-38%

Key machine describe

Bucket Elevator

1. smooth bucket structure against clamping fruits, suitable for tomato, strawberry, apple, pear, apricot, etc.
2. running stably with low noise, speed adjustable by transducer.
3. anticorrosive bearings, double sides seal.

Air Blowing & Washing Machine

1 Used to wash fresh tomato, strawberry, mango, etc.
2 Special design of surfing and bubbling to ensure a through cleaning and lessening the damage to the fruit as well.
3 Suitable for many kinds of fruit or vegetables, such as tomatoes, strawberry, apple,mango,etc.

Peeling, pulping & Refining Monobloc (Pulper)

1. The unit can peel, pulp and refine fruits together.
2. The aperture of strainer screen can be adjustable (change) based on customer’s requirement.
3. Incorporated Italian technology, high quality stainless steel material in contact with fruit material.

Belt press extractor

1. Widely used in extracting and dehydrating of many kinds of acinus, pip fruits, and vegetables.
2. the unit adopt advanced technology, big press and high efficiency, high degree of automatic, easy to operate and maintains.
3. the extraction rate can be get 75-85%(based on raw material)
4. low investment and high efficiency

Preheater

1. To inactivate enzyme and protect color of paste.
2. Auto temperature control and the out temperature are adjustable.
3. Multi-tubular structure with end cover
4. If the effect of preheat and extinguish enzyme failed or not enough, the product flow return to tube again automatically.

Evaporator

1. Adjustable and controllable direct contact heat treatment units.
2. Shortest possible residence time, presence of a thin film along the entire length of the tubes reduces holdup and residence time.
3. Special design of liquid distribution systems to ensure correct tube coverage. The feed enters at the top of the calandria where a distributor ensures film formation on the inside surface of each tube.
4. The vapor flow is co-current to the liquid and the vapor drag improves the heat transfer. The vapor and the remaining liquid are separated in a cyclone separator.
5. Efficient design of separators.
6. Multiple effect arrangement provides steam economy.

Tube in tube sterilizer

1. The united is consisted of product receiving tank, superheated water tank, pumps, product dual filter, tubular superheated water generate system, tube in tube heat exchanger, PLC control system, Control cabinet, steam inlet system, valves and sensors, etc.
2. Incorporated Italian technology and conform to Euro-standard
3. Great heat exchange area, low energy consumption and easy maintenance
4. Adopt mirror welding tech and keep the smooth pipe joint
5. Auto backtrack if not enough sterilization
6. CIP and auto SIP available together with aseptic filler
7. Liquid level and temp controlled on real time
