Factory Machine Tomato Paste Production Plant

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
JUMPFRUTIS
Model Number:
JP-0045FQJ
Type:
factory machine tomato
Voltage:
220V/380V
Power:
4kw
Weight:
15000kg
Dimension(L*W*H):
1380*1200*2000mm
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training
Product name:
tomato processing plant
Production capacity:
0.5-500T/H
Material:
SUS304
Function:
from tomato washing to final packaging
Usage:
ketchup, onion, carrot,chili, apples auce
Raw material:
fresh tomato/fruit
Advantage:
After-sales Service
Item:
Automatic Fruits Jam Machine
Feature:
Turn Key Project
Supply Ability
Supply Ability:
5 Set/Sets per Month tomato processing plant
Packaging & Delivery
Packaging Details
1.Stable wooden package protects machine from strike and damage. 2.Wound plastic film keeps machine out of damp and corrosion.3.Fumigation-free package helps the smooth customs clearance.4.The big size machine will be fixed in container without package.
Port
shanghai ports



Lead Time :
Quantity(Sets) 1 – 1 >1
Est. Time(days) 90 To be negotiated
Product Description

    Tomato / chilli paste / sauce / ketchup / jam / puree production line Application

     Raw materials: fresh tomato( mango, guayaba, papaya) but also can be shared with apricot sauce and chili sauce

    The final product: paste, sauce, and fruits jam
 Packing: 220L aseptic bag in drum and 70g-4500g tinplate cans or 10g-500g plastic bag

     Fresh tomato treatment: 0.5-50 tons/hour of fresh fruits
  Tomato paste output: 0.1-100 tons/hour of 28%-30% ,36%-38%tomato paste

Whatsapp/Line/Wechat/Mobile: 008613681836263  Welcome any inquiry!

Main Features

we take advantages of the comprehensive and technical cooperation with the Italian company partner, now in fruit processing, cold breaking processing, multi effect energy saving concentrated, sleeve type sterilization and aseptic big bag canning has made domestic and unmatched technical superiority. We can provide the entire production line processing 500KG-1500 tons of raw fruit daily according to the customers.

Turnkey solution. No need worry if you know little about how to carry out the plant in your country.We not only offer the equipment to you,but also provide one-stop service, from your warehouse designing (water, electricity ,staff) , worker training, machine installation and debugging, life-long after-sale service etc.

Our company adheres to the purpose of “Quality and Service Branding”, after many years of efforts, has set a good image in the domestic ,due to superior price, and excellent service , at the same time, the company products are also widely infiltrated into Southeast Asia, Middle East, Africa, South America, Europe and many other overseas markets.

Detailed Images

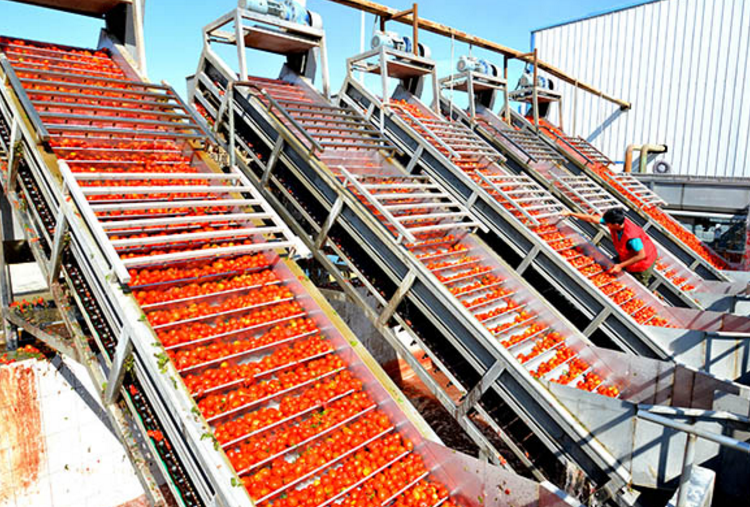

Tomato washing machine

Tomatoes are washed by high pressure water in the fruit washing machine. Scraper elevator conveys the cleaned tomatoes to the next procedure.

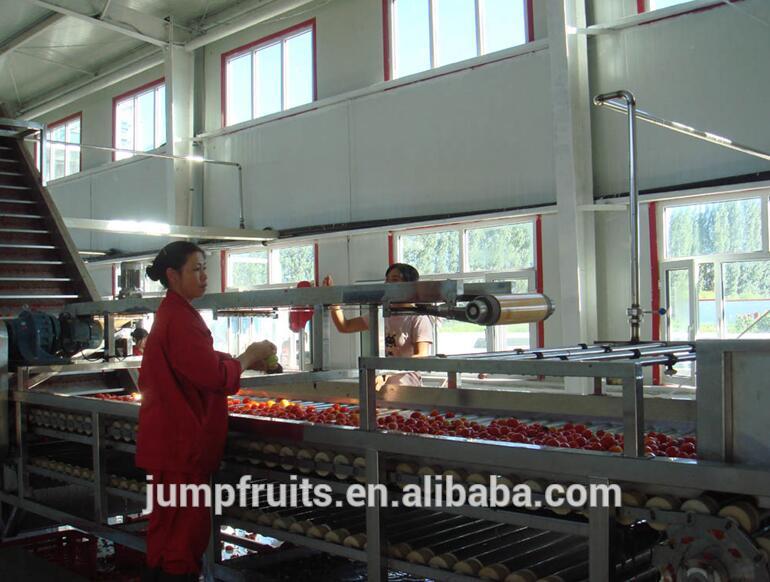

Tomatoes Roller sorting machine

Cleaned fruits enter into the machine from the feeding hopper, and rotate forward toward the outlet. Workers pick out the unqualified tomatoes to ensure the quality of the end product.

Tomatoes crusher Broken Pump

Used for conveying and crushing of tomatos, preparing for pre-heating and pulping.

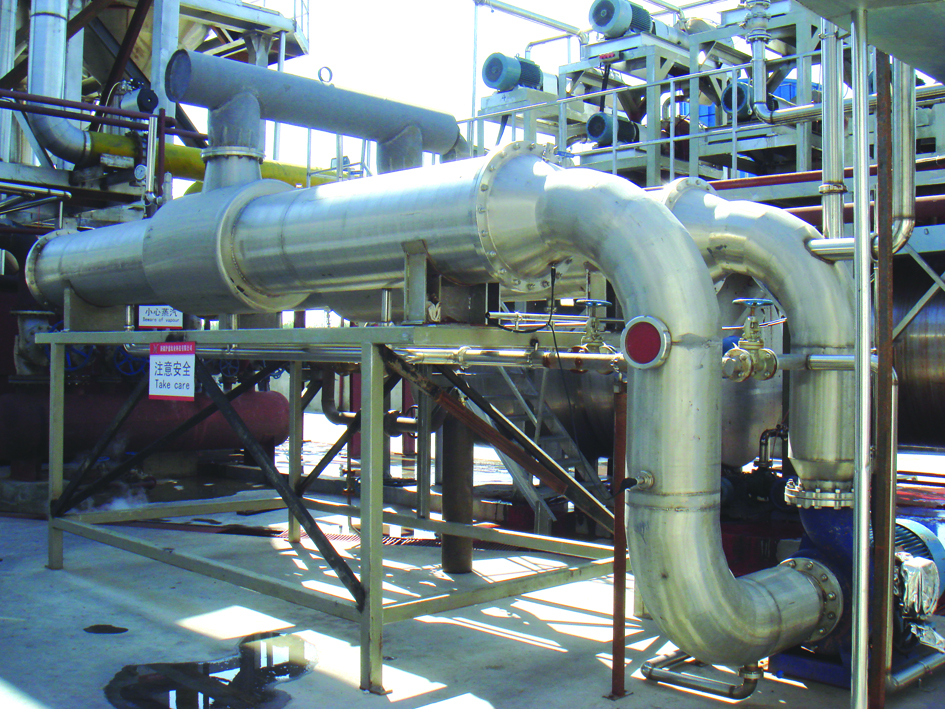

Tubular Preheater

Tubular preheater increases the temperature of the pulp by steam heating, so that to soften the pulp and deactivate the enzymes.

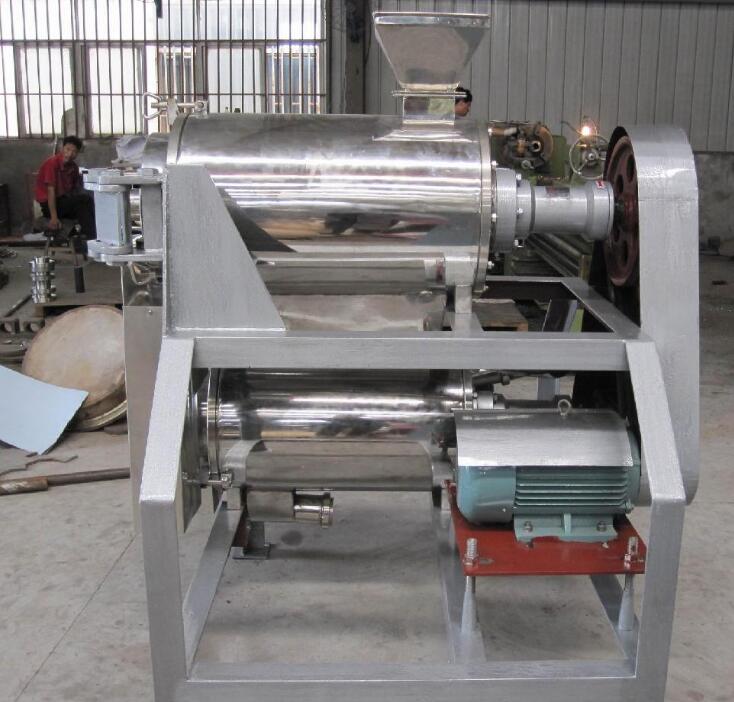

Tomato Single-channel Pulper Machine

Single-channel pulping machine is used for automatic separation of pulp and residue from the crushed and preheated tomatoes. The material from the last procedure enters into the machine through the feed inlet, and spirals toward the outlet along the cylinder. By centrifugal force, the material is pulped. The pulp passes through the sieve and is sent to the next procedure, while the skin and seeds are discharged through the residue outlet, achieving the aim of automatic separation. The pulping speed can be changed by changing the sieve and adjusting the lead angle of the scraper.

Tomato paste / concentrate Vacuum Evaporator

This equipment is used for vacuum concentration of tomato pulp under low temperature. Steam is fed into the jacket at the lower part of the boiler, making the material under vacuum boil and evaporate. Blender in the boiler helps strengthen the flowing of the material.

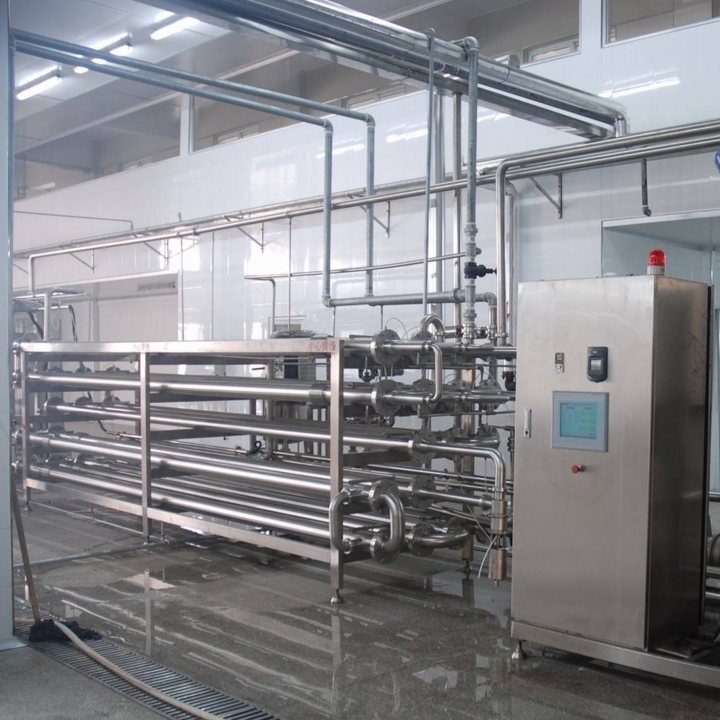

Tomato pasye UHT Tubular Sterilizer

Tubular sterilizer increases the temperature of the concentrate by steam heating, achieving the aim of sterilization.

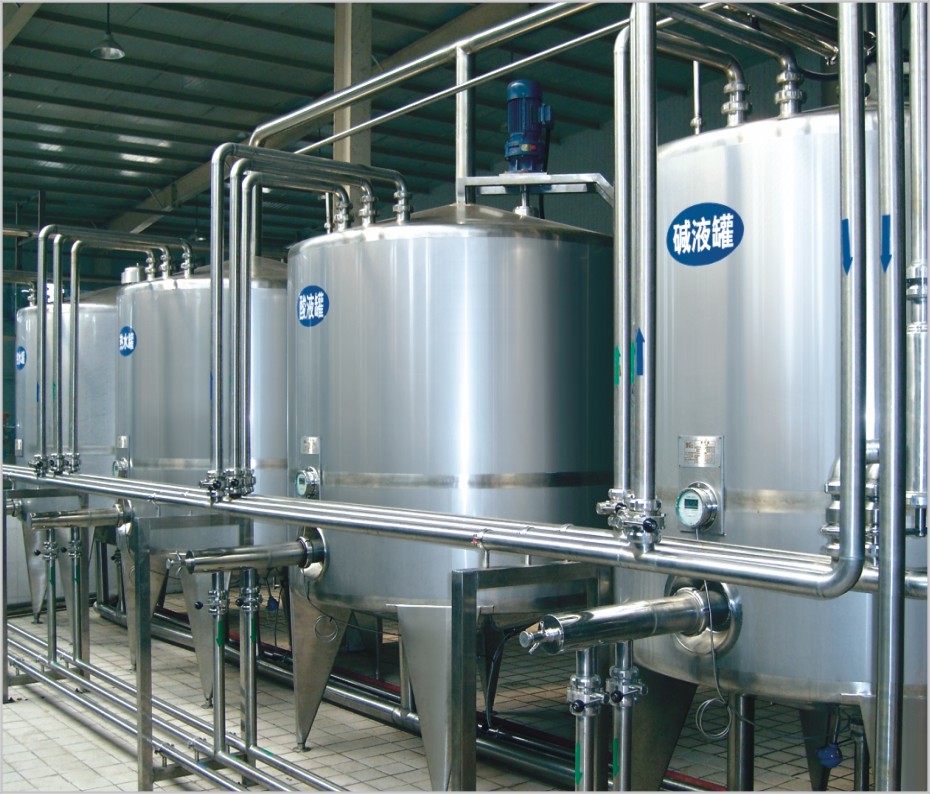

CIP clean system

Semi-automatic cleaning system

Including acid tank ,base tank ,hot water tank, heat exchange system and controlsystems. Cleaning all the line.

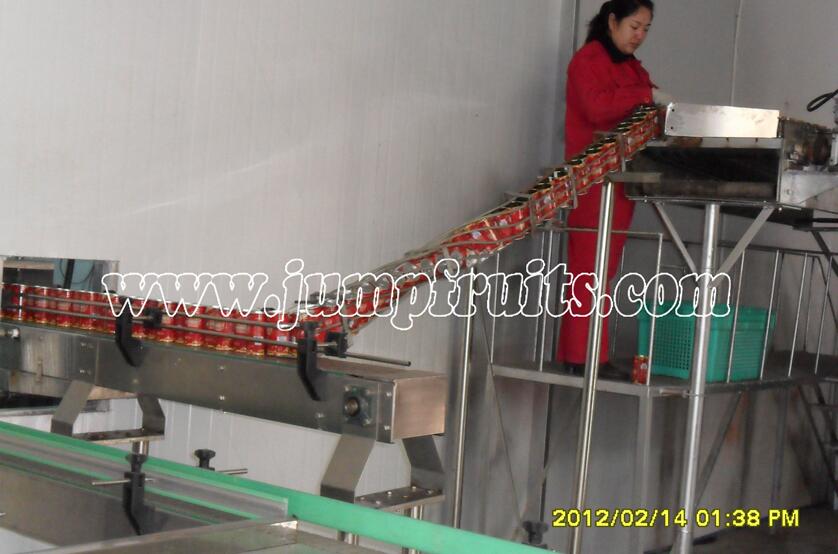

Tomato paste filling sealing and packaging machine

Specially suitable for tomato paste, mango puree and other viscous product.
