JC300 Tin Cans Automatic Empty Tank Unloading Depalletizer Machine

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Type:
Packaging Line
Packaging Material:
metal, Glass
Application:
Food, Beverage
Condition:
New
Packaging Type:
CANS, Bottles
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380v
Place of Origin:
Shanghai, China
Brand Name:
jumpfruits
Dimension(L*W*H):
7200*4500*3500mm
Weight:
2660kg
Certification:
CE
After-sales Service Provided:
Video technical support, Field installation, commissioning and training
Warranty:
1 Year
Product name:
can depalletizer machine
Function:
depalletizer machine
Usage:
Tin Cans bottles unloading
Capacity:
0-300cans/min
Applicable Product:
Tin Cans
Packaging & Delivery
Packaging Details
wooden case
Port
Shanghai

Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 – 1 >1
Est. Time(days) 10 To be negotiated
Product Description

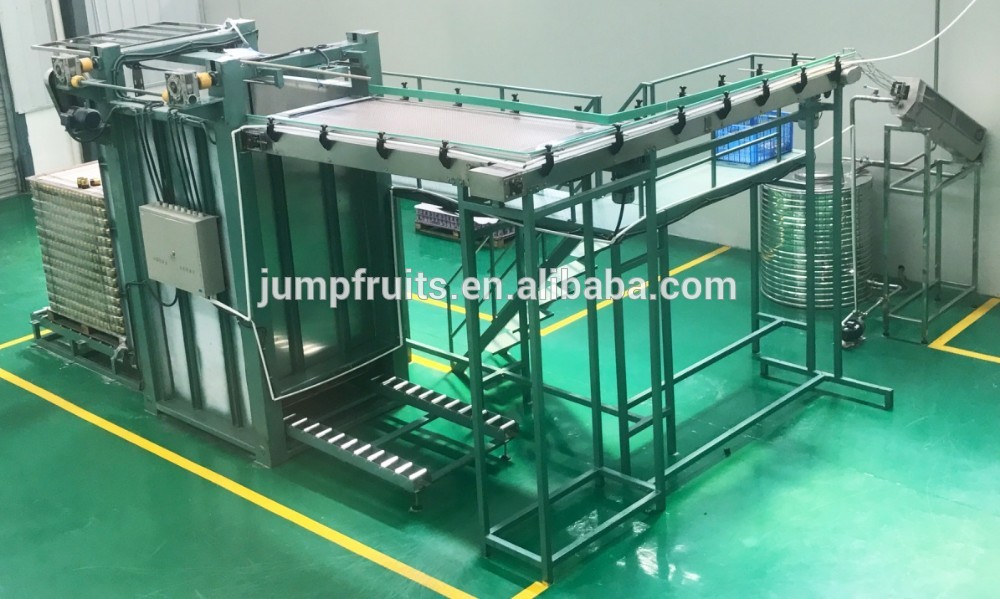

JC300 tin cans automatic empty tank unloading depalletizer machine

This machine is suitable for automatic unloading of cans of cans (tank, aluminum cans) as outer packaging materials. The production capacity per minute is 0-300 cans, which is the first choice for beverage factories and canned food factories with a certain scale.

Equipment principle:
The pallet stacked with empty cans is placed on the pallet conveyor chain by the forklift and sent to the pallet lifting platform of the host. The pallet lifting platform raises the positioned empty tank pallet to the height of the unloading tank, and the cylinder drives the push tank baffle to push the empty tank of the whole layer onto the mesh belt, and then returns to the preparation position, and continues to push the next layer, each The paper separator of the layer is manually taken to a fixed position. When the empty can is unloaded, the empty pallet is lowered to the horizontal position of the chain conveyor, and the empty stack can be pushed when the next empty can is pushed in. The plate is transported out of the rear of the depalletizer and manually removed.

Features
1. Self-locking mechanism, photoelectric induction: All the actions of ascending and descending are controlled by the self-locking lifting system device, and the speed of ascending or descending can be individually adjusted, and all the motion positioning is controlled by the photoelectric switch;
2. Cylinder push tank: The push tank action is completed by the cylinder, and the thrust can be adjusted;
3. High-quality components – using Mitsubishi’s PLC, Schneider’s contactor, Omron’s proximity switch and other high-quality configuration;
Easy to operate: The production process is controlled by buttons.

Tin cans depalletizer machine technical parameter
Model
JC 300
Motor power
2.5KW
Production efficiency
0-300cans/min
Dimension
7200×4500×3500mm
Weight
2660kg
For stack board size:
1100 x 1400 mm (customizable)
Packing & Delivery
Packaging
Size
1400*500*1400mm
Weight
200KG
Packaging Details

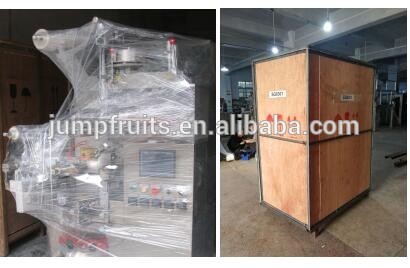

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Our Company

Own tomato planting base in Xinjiang+Machinery processing line+15 years export experience+professional customerize service=your reliable business partner
1.Planting base in Xinjiang,producing tomato products(paste/powder,etc) in world top quality,with production capability of over 1000T/day
2.Factory of machinery and engineering vegetables and fruit paste processing,juice drink processing and fruit powder process etc.,absorbing world advanced technology.
3.15 years export experience, easily transport cargo to your door
4.customerized service, revise our products or OEM for your requirements
