Hot Sale 100% Pure Watermelon Juice Processing Line

Short Description:

Product Detail

Product Tags

Quick Details
Place of Origin:
Shanghai, China
Brand Name:
Model Number:
juice processing line
1 Year warranty,life-long aftersell service
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
watermelon juice production line
turnkey solution,from A to Z service
reasonable design for customer,100kg/H to 100T/H
home scale and commercial scale
SUS304 Stainless Steel
Automatic Fruits Juicer Machine
Commercial Usage
Supply Ability:
20 Set/Sets per Month
Packaging Details
Stable wooden package protects machine from strike and damage. Wound plastic film keeps machine out of damp and corrosion.Fumigation-free package helps the smooth customs clearance.The big size machine will be fixed in container without package.
shanghai port
Lead Time :
2 months
Scientific design

Main System introduction:

Water treatment:

Raw water tank → raw water pump → quartz sand filter → activated carbon filter → PH adjusting device → precision filter → RO device → ultraviolet sterilizer → pure water tank → pure water pump

Deployment and sterilization system:

Cleaning → beating → enzymolysis → filtration → sugar cans → beverage pump → syrup filter → dispensing tank → beverage pump → double filtration → ultra-high temperature sterilizer → high sterile insulation tank → CIP cleaning device → CIP return pump

Filling and packaging system:

Washing cans → Filling and Sealing 2 in 1 unit → Turn cans → Conveying system → Tunnel sterilization → Strong drier → Inkjet printer → Turn cans → Manual packing

Related beverage machinery and equipment:

Sterilization tank, mixing tank, direct cooling tank, hot and cold tank, sugar pot, the reaction plate heat exchanger, filtration equipment, horizontal sterilization pot, ultra-high temperature instantaneous sterilization machine, enrichment equipment, CIP cleaning equipment , Beverage pump, filter equipment, water softening and processing equipment, beater, colloid mill, juice equipment, homogenizer, vacuum degassing tank, multi-function extraction tank, filling equipment, sanitary valves etc.


1.freely placed

2.Convenient maintenance

3.steady performance

4.easy operate


To design watermelon juice/pulp/puree processing line of energy and capital intensive. Just free free to contact  008613681836263

JUMP is keeping leadership position in the tomato paste and concentrated apple juice processing line. We also have made brilliant achievements in other fruit& vegetable beverage equipments, such as:

1. Juice production line for orange juice, grape juice, jujube juice, coconut drink/coconut milk, pomegranate juice, watermelon juice, cranberry juice, peach juice, cantaloupe juice, papaya juice, sea buckthorn juice, orange juice, strawberry juice, mulberry juice, pineapple juice, kiwi juice, wolfberry juice, mango juice, sea buckthorn juice, exotic fruit juice, carrot juice, corn juice, guava juice, cranberry juice, blueberry juice, RRTJ, loquat juice and other juice drinks dilution filling production line
2. Can food production line for canned Peach, canned mushrooms, canned chili sauce, paste, canned arbutus, canned oranges, apples, canned pears, canned pineapple, canned green beans, canned bamboo shoots, canned cucumbers, canned carrots, canned tomato paste, canned cherries, canned cherry
3. Sauce production line for mango sauce, strawberry sauce, cranberry sauce, canned hawthorn sauce etc.

We grasped proficient technology and advanced biological enzyme technology, successfully applied in more than 120 domestic and foreign jam &juice production lines and we has helped client gain excellent products and good economic benefits.

Our unique–Turnkey Solution.:

No need worry if you know little about how to carry out the plant in your country.We not only offer the equipments to you,but also provide one-stop service, from your warehouse designing (water, electricity ,steam) , worker training, machine installation and debugging, life-long after-sale service etc.

Consulting + Conception
As a first step and prior to project implementation, we will provide to you profoundly experienced and highly competent consulting services. Based on an extensive and thorough analysis of your actual situation and requirements we will develop your customized solution(s). In our understanding, customer-focused consultation means that all steps planned – from the initial conception phase to the final phase of implementation – will be conducted in a transparent and comprehensible manner.

 Project Planning
A professional project planning approach is a prerequisite for the realization of complex automation projects. On the basis of each individual assignment we calculate time frames and resources, and define milestones and objectives. Due to our close contact and cooperation with you, in all project phases, this goal-oriented planning ensures the successful realization of your investment project.

 Design + Engineering
Our specialists in the fields of mechatronics, control engineering, programming, and software development closely cooperate in the development phase. With the support of professional development tools , these jointly developed conceptions will then be translated into design and work plans.

 Production + Assembly
In the production phase, our experienced engineers will implement our innovative ideas in turn-key plants. The close coordination between our project managers and our assembly teams ensures efficient and high-quality production results. After the successful completion of the test phase, the plant will be handed over to you.

 Integration + Commissioning
In order to reduce any interference with associated production areas and processes to a minimum, and to guarantee a smooth set-up, the installation of your plant will be conducted by the engineers and service technicians who have been assigned to and accompanied the individual project development and production stages. Our experienced staff will ensure that all required interfaces work, and your plant will be successfully put into operation.

Key machine describe

Bucket Elevator

1. smooth bucket structure against clamping fruits, suitable for tomato, strawberry, apple, pear, apricot, etc.
2. running stably with low noise, speed adjustable by transducer.
3. anticorrosive bearings, double sides seal.

Air Blowing & Washing Machine

1 Used to wash fresh tomato, strawberry, mango, etc.
2 Special design of surfing and bubbling to ensure a through cleaning and lessening the damage to the fruit as well.
3 Suitable for many kinds of fruit or vegetables, such as tomatoes, strawberry, apple,mango,etc.

Peeling, pulping & Refining Monobloc (Pulper)

1. The unit can peel, pulp and refine fruits together.
2. The aperture of strainer screen can be adjustable (change) based on customer’s requirement.
3. Incorporated Italian technology, high quality stainless steel material in contact with fruit material.

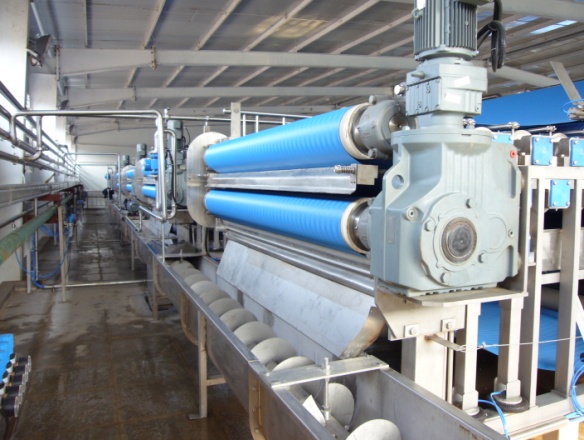

Belt press extractor

1. Widely used in extracting and dehydrating of many kinds of acinus, pip fruits, and vegetables.
2. the unit adopt advanced technology, big press and high efficiency, high degree of automatic, easy to operate and maintains.
3. the extraction rate can be get 75-85%(based on raw material)
4. low investment and higefficiency


1. To inactivate enzyme and protect color of paste.
2. Auto temperature control and the out temperature are adjustable.
3. Multi-tubular structure with end cover
4. If the effect of preheat and extinguish enzyme failed or not enough, the product flow return to tube again automatically.


1. Adjustable and controllable direct contact heat treatment units.
2. Shortest possible residence time, presence of a thin film along the entire length of the tubes reduces holdup and residence time.
3. Special design of liquid distribution systems to ensure correct tube coverage. The feed enters at the top of the calandria where a distributor ensures film formation on the inside surface of each tube.
4. The vapor flow is co-current to the liquid and the vapor drag improves the heat transfer. The vapor and the remaining liquid are separated in a cyclone separator.
5. Efficient design of separators.
