2T Double-effect Single-effect Vacuum Low Temperature Juice Concentrator Evaporator

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Applicable Industries:
Food & Beverage Factory
Condition:
New
Power Source:
Electric
Process:
Vacuum Distillation
Place of Origin:
China
Brand Name:
Jumpfruits
Voltage:
380V
Power:
10.5KW
Dimension(L*W*H):
2700*1700*3200MM
Weight:
1t
Certification:
SGS
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training
Product name:
Fruit juice concentrator evaporator
Application:
Labs,Chemistry, food industry
Material:
Stainless Steel 304/316L
Vacuum degree:
-0.05 -0.09Mpa
Main uses:
Industrial Distillation
Rotating Speed:
25rpm
Motor power(W):
3000
tank volume:
2000L
Supply Ability
Supply Ability:
50 Set/Sets per Month juice concentrator evaporator
Packaging & Delivery
Packaging Details
Package in wooden case
Port
Shanghia
Lead Time :
Quantity(Sets) 1 – 1 >1
Est. Time(days) 20 To be negotiated
Product Description

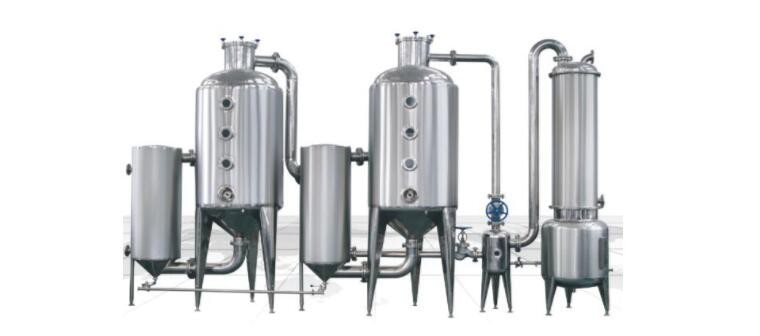

2T  vacuum low temperature juice concentrator evaporator

I Application:The vacuum concentrator evaporator is suitable for the process of concentration, distillation and recovery of organic solvent in food, pharmaceutical, chemical and other industries, especially suitable for low temperature concentration of heat sensitive materials.

II Features:

1. Advanced equipment structure design, high efficiency, convenient operation, high degree of automation, etc.

2, the equipment system is working under negative pressure, heating and evaporation temperature is low, suitable for evaporation and concentration of heat sensitive materials.

3. Due to the concentration under reduced pressure, it has the characteristics of short time and fast speed.

4. The material is evaporated in a fully sealed system, and the concentrated material is non-polluting.

5. Using a scraper type mixing system, the concentration effect is good, suitable for the concentration of high viscosity materials.

6. Made of high quality SUS 304 stainless steel, durable, in line with GMP standards.

III The concentrator technical parameters:

No.
Device name
Technical parameters
1
Concentration tank volume
2000
2
Heating area
3.6㎡
3
Condensation area
12㎡
4
Concentration temperature
40-80℃
5
Geared motor
3KW
6
Vacuum pump
7.5KW
7
Vacuum degree
-0.05~-0.09MPa
8
Dimension
2700*1700*3200mm
Hot-selling Machines

Air Blowing & Washing Machine

1 Used to wash fresh tomato, strawberry, mango, etc.
2 Special design of surfing and bubbling to ensure a through cleaning and lessening the damage to the fruit as well.
3 Suitable for many kinds of fruit or vegetables, such as tomatoes, strawberry, apple,mango,etc.

Peeling, pulping & Refining Monobloc (Pulper)

1. The unit can peel, pulp and refine fruits together.
2. The aperture of strainer screen can be adjustable (change) based on customer’s requirement.
3. Incorporated Italian technology, high quality stainless steel material in contact with fruit material.

Belt press extractor

1. Widely used in extracting and dehydrating of many kinds of acinus, pip fruits, and vegetables.
2. the unit adopt advanced technology, big press and high efficiency, high degree of automatic, easy to operate and maintains.
3. the extraction rate can be get 75-85%(based on raw material)
4. low investment and high efficiency

Preheater

1. To inactivate enzyme and protect color of paste.
2. Auto temperature control and the out temperature are adjustable.
3. Multi-tubular structure with end cover
4. If the effect of preheat and extinguish enzyme failed or not enough, the product flow return to tube again automatically
.

Evaporator

1. Adjustable and controllable direct contact heat treatment units.
2. Shortest possible residence time, presence of a thin film along the entire length of the tubes reduces holdup and residence time.
3. Special design of liquid distribution systems to ensure correct tube coverage. The feed enters at the top of the calandria where a distributor ensures film formation on the inside surface of each tube.
4. The vapor flow is co-current to the liquid and the vapor drag improves the heat transfer. The vapor and the remaining liquid are separated in a cyclone separator.
5. Efficient design of separators.
6. Multiple effect arrangement provides steam economy.

Tube in tube sterilizer

1. The united is consisted of product receiving tank, superheated water tank, pumps, product dual filter, tubular superheated water generate system, tube in tube heat exchanger, PLC control system, Control cabinet, steam inlet system, valves and sensors, etc.
2. Incorporated Italian technology and conform to Euro-standard
3. Great heat exchange area, low energy consumption and easy maintenance
4. Adopt mirror welding tech and keep the smooth pipe joint
5. Auto backtrack if not enough sterilization
6. CIP and auto SIP available together with aseptic filler
7. Liquid level and temp controlled on real time
