Professional industrial fruit crusher for apple orange and vegetable

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
JUMPFRUITS
Model Number:
JPF-PS9807
Type:
Cutter
Voltage:
220V/380V
Power:
1.5kw
Weight:
200kg
Dimension(L*W*H):
1100*600*750
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Overseas service center available
Product name:
industrial fruit crusher for apple orange
Material:
304 Stainless Steel
Usage:
Industrial Usage
Capacity:
0.5-5t/h
Application:
fruits and vegetable
Color:
Customers' Requirements
Feature:
High Efficiency
Function:
Multifunctional
Name:
Vegetable And Fruits Crusher
Item:
Automatic Fruits Paste Machine
Supply Ability
20 Set/Sets per Month

Packaging & Delivery
Packaging Details
package in cartons
Port
shanghai

Lead Time :
15-25days

Product Description
Fruits and vegetables crusher
Detailed Images

The detailed information of fruit crusher

Model
JPF-PS8970
JPF-PS8971
JPF-PS8972
JPF-PS8973
JPF-PS8974
Power(KW)
5.5
5.5
11
11
22
Speed(rate/minute)
1470
1470
1470
1470
1470
Dimension(l*w*h)mm
1100*600*750
1300*600*800
1500*650*800
1700*650*800
2000*650*900
Whole Line
A. Scraper-type spray elevator

Select stainless steel bracket, food-grade and hard plastic or stainless steel scraper, smoothing blade architecture to prevent the fruit jam; Using imported anti-corrosion bearings, double-sided seal; with continuously variable transmission motor, variable frequency Speed and low operating costsTitle goes here.

B. Sorting  machine


Stainless steel roller conveyor, rotation and solution, a full range of check, no need ends. Manmade fruit platform, painted carbon steel bracket,stainless steel antiskid pedal,stainless steel fence.

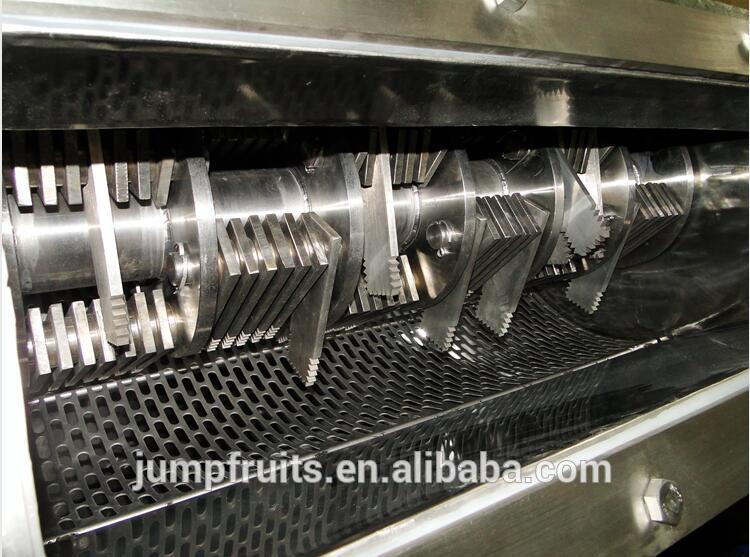

C. Crusher

Fusing Italian technology, multiple sets of cross-blade structure, crusher size can be adjusted according to customer or specific project requirements, it will increase the juice juice rate of 2-3% relative to the traditional structure , which is suitable for production of onion sauce, carrot sauce, pepper sauce , apple sauce and other fruits and vegetables sauce and products

D. Double-stage pulping machine

It have tapered mesh structure and the gap with load can be adjusted, frequency control, so that the juice will be cleaner; Internal mesh aperture are based on customer or specific project requirements to order

E. Evaporator

Single-effect, double-effect,triple-effect and multi-effect evaporator, which will save more energy; Under vacuum, continuous low temperature cycle heating to maximize the protection of nutrients in the material as well as the originals. There are steam recovery system and double times condensate system, it can reduce the consumption of steam;

F. Sterilization machine

Having obtained nine patented technology, take full advantages of the material’s own heat exchange to save energy– about 40%

F. Filling machine

Adopt Italian technology, sub-head and double-headed, continuous filling, reduce return; Using steam injection to sterilize, to ensure filling in aseptic state , the shelf life of product will twp years at room temperature ; In the filling process,using turntable lifting mode to avoid secondary pollution.

Our Service
Pre-sales service

We can suggest customer the most suitable machine according to their formula and Raw material. “Design and development”, “manufacturing”, “installation and commissioning”, “technical training” and “after sales service”. We can introduce you supplier of raw material, bottles, labels etc. Welcome you to our production workshop to learn how our engineer produce. We could customize machines according to your real need, and we could send our engineer to your factory to install machines and train your worker of Operation and maintenance. Any more requests. Just let us know.

After-sale service

1.Installation and commissioning: We will send experienced engineering and technical personnel to be responsible for the installation and commissioning of the equipment until the equipment is qualified to ensure that the equipment is in time and put into production;

2.Regular visits:To ensure the long-term stable operation of the equipment, we will be based on customer needs, provide one to three times a year to come to technical support and other integrated services;

3.Detailed inspection report: Whether the inspection regular service, or the annual maintenance, our engineers will provide a detailed inspection report for the customer and the company reference archive, in order to learn the equipment operation at any time;

4.Fully complete parts inventory: In order to reduce the cost of parts in your inventory, provide better and faster service, we prepared a complete inventory of parts of equipment, to meet customers possible period of want or need;

5.Professional and technical training:In order to ensure the performance of the customer’s technical personnel to become familiar with the equipment, correctly grasp the equipment operation and maintenance procedures, in addition to install on-site technical training. Besides, you also can hold all kinds of professionals to the factory workshops, to help you faster and more comprehensive grasp of technology;

6.Software and consulting services:In order to allow your technical staff to have a greater understanding of the equipment related counseling, I will arrange to send the equipment regularly sent to the advisory and latest information magazine.No need worry if you know little about how to carry out the plant in your country.We not only offer the equipments to you,but also provide one-stop service, from your warehouse designing (water, electricity ,steam) , worker training, machine installation and debugging, life-long after-sale service etc.
