How Fruit Juice Concentrate Machines Work Step by Step

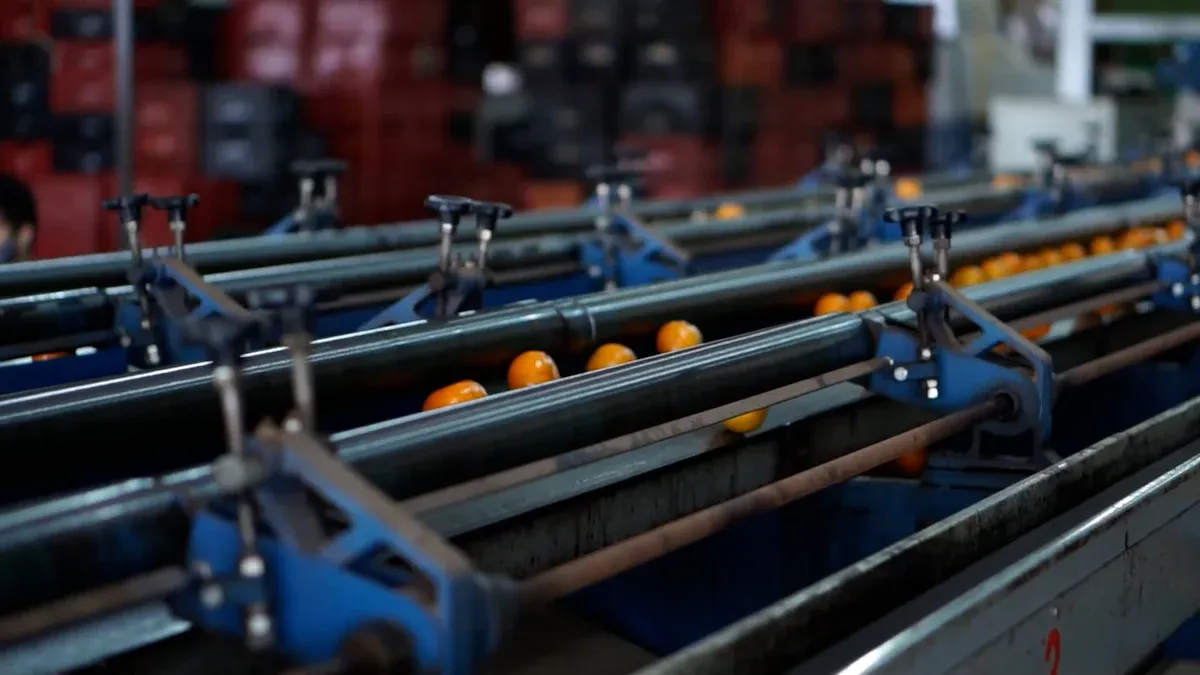

Fruit Juice Concentrate Machines

Image Source: pexels

You use a Fruit Juice Concentrate Machine to remove water from juice with advanced technology. These machines can process up to 20,000 liters of juice per hour and reach juice solids over 70°Brix, making the juice thicker and easier to store. By working at lower temperatures, you protect important nutrients and flavors. For example, vacuum concentration at 60°C can keep up to 86.56 mg of betalain and high antioxidant activity in the juice. Non-thermal methods like UV or ultra-high pressure help keep more vitamins and natural colors compared to high-heat treatments.

Key Takeaways

Choose fruits with high juice yield and rich nutrients to get the best quality juice concentrate.
Prepare and pre-treat fruit properly using enzymes and physical methods to improve juice clarity and extraction.
Use modern washing and sorting machines to clean fruit thoroughly and select only the best pieces for juice.
Select the right crushing and extraction machines to maximize juice yield and keep nutrients intact.
Use vacuum concentration and low-temperature processing to remove water gently, preserving flavor, vitamins, and antioxidants.

Fruit Selection & Prep

Choosing Fruit
You start by picking the right fruits for juice concentration. The best fruits have high juice yield, strong flavor, and plenty of nutrients. Scientists use special tests to check which fruits work best. They look at how juice flows, how much sugar it contains, and how well it keeps its healthy compounds during processing.
Studies show that using methods like response surface methodology helps you find the best conditions for juice concentration.
Pre-treating juice, such as with microfiltration, improves both the speed of evaporation and the quality of the juice.
Fruits like apple, orange, pomegranate, and red fruit blends have been tested. These fruits keep their nutrients and flavors well during concentration.
Membrane processes, such as reverse osmosis, help concentrate juice while keeping its taste and vitamins.
Red fruit juices, in particular, hold onto important compounds like polyphenols and anthocyanins, which are good for your health.
Tip: Always choose fruits that have high levels of bioactive compounds. These compounds help keep the juice healthy and tasty after concentration.
You can also compare different fruits and extraction methods to get the most nutrients. The table below shows how some common fruits perform:

Fruit Extraction Method Total Polyphenols Flavonoids Ascorbic Acid Antioxidant Capacity (Trolox eq.) Notes
Persimmon Blended (whole) Highest High High (233.9 mg) Highest (1001.3 mM) High pulp and phenolic compounds
Mandarin Orange Blended (whole) High High High High High ascorbic acid and polyphenols
Apple Juiced (flesh) Moderate Highest (295.1 mg) Moderate Moderate Highest flavonoid content
Pear Blended (whole) Lowest Low Low Lowest Lowest antioxidant capacity

Pre-Processing
Before you extract juice, you need to prepare the fruit. Pre-processing makes the juice easier to filter and improves its quality. You can use both enzymes and physical methods to get better results.
Enzymatic pre-treatment with pectinase breaks down thick parts of the juice. This step reduces viscosity and helps the juice flow faster through filters.
Mixing pectinase with other enzymes, such as proteases or amylases, breaks down even more juice components. This combination makes filtration more efficient.
Physical methods like sedimentation and coagulation remove solids that can clog filters. These steps help you get clearer juice.
Changing the surface of the filter membranes to make them more water-friendly also helps. This change, along with physical pre-treatment, keeps the filters from clogging and improves juice clarity.
By following these steps, you set up the juice for the best possible concentration process. You keep more nutrients and get a better-tasting final product.

Washing & Sorting

Washing Equipment
You need to wash fruit carefully before making juice concentrate. Washing equipment uses water sprays, brushes, and sometimes mild detergents to remove dirt, pesticides, and microbes from the fruit surface. You can find machines that handle large amounts of fruit quickly, which helps keep the process efficient.
To measure how well these machines work, you can use performance metrics like Overall Equipment Effectiveness (OEE), Overall Operations Effectiveness (OOE), and Total Effective Equipment Performance (TEEP). These metrics track how often the equipment runs, how fast it works, and how well it cleans the fruit. OEE focuses on the percentage of time the machine operates correctly during scheduled hours. OOE includes all stoppages, planned or unplanned, and TEEP measures performance against nonstop operation. By tracking these numbers, you can spot problems like downtime or cleaning issues and improve the washing process. This helps you keep the fruit clean and the juice safe.
Tip: Regularly check and maintain your washing equipment. Clean machines help you avoid contamination and keep juice quality high.
Sorting Methods
After washing, you need to sort the fruit. Sorting removes damaged, unripe, or spoiled fruit so only the best pieces go into the juice. Modern sorting machines use cameras, sensors, and artificial intelligence to check each fruit for size, color, shape, and defects. These systems work much faster and more accurately than manual sorting.
You can see how well these methods work in the table below:

Fruit Type Method/Technology Classification Criteria Accuracy Range (%)
Bananas Deep learning, CNN, hyperspectral imaging Size, texture, defects, ripeness 88% - 98.45%
Mangoes CNN, Inception v3, VGG16, ResNet152 Shape, size, color, texture, defects, ripeness 83.3% - 99.2%
Apples Deep learning (EfficientNet, stacking ensemble) Shape, size, appearance, freshness 93.8% - 99.2%
Papayas K-Mean clustering, ABC classifier Shape, texture, defects 90.15% - 94.4%

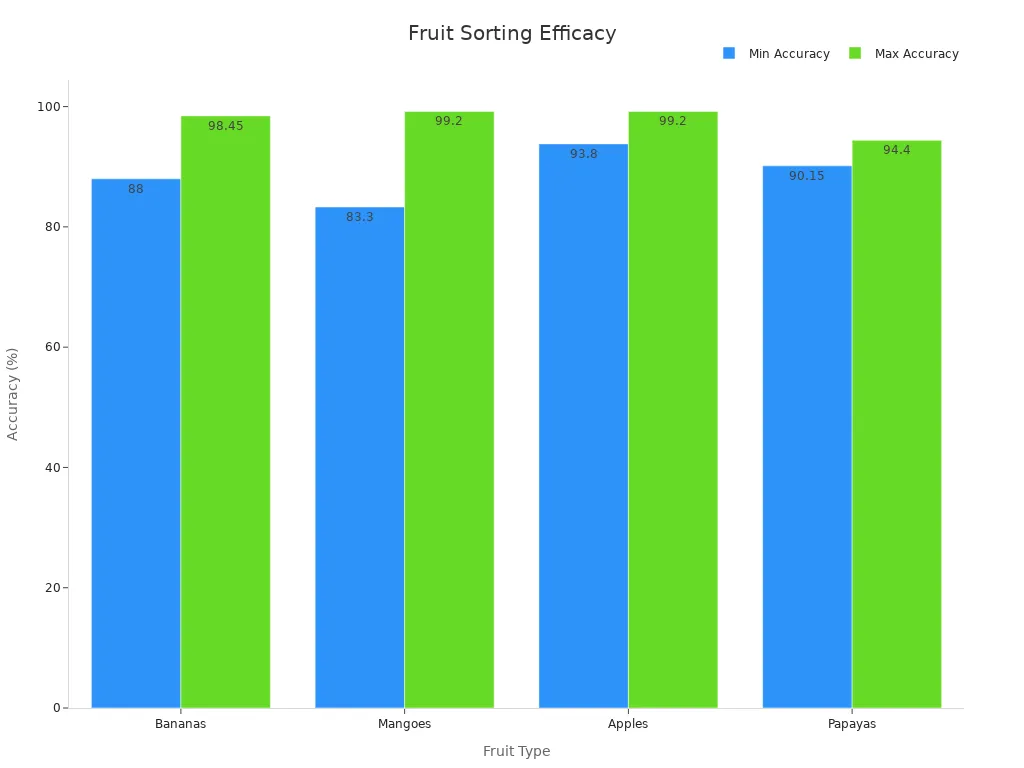

Fruit Juice Concentrate Machines(1)

These sorting systems follow international grading rules and can reach up to 99% accuracy for some fruits. By using advanced sorting, you make sure only high-quality fruit enters the juice concentrate process, which helps you get better taste and nutrition in the final product.

Juice Extraction

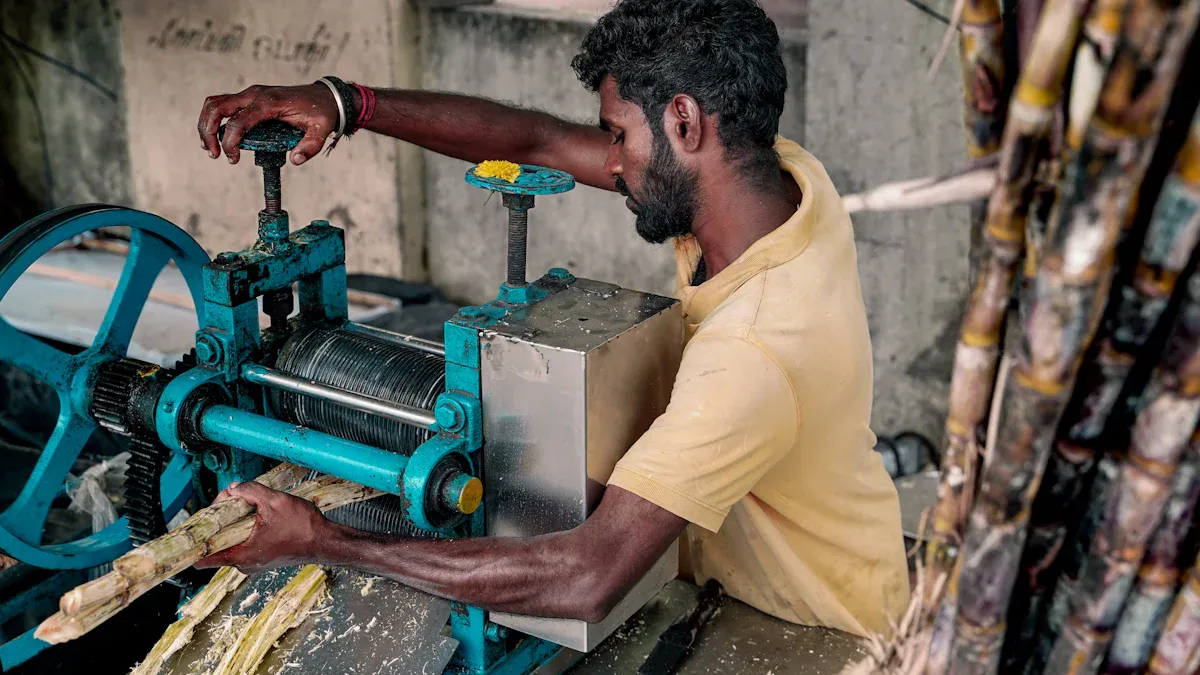

Fruit Juice Concentrate Machines(2)

Crushing Machines
You need to break down fruit before you can extract juice. Crushing machines do this job quickly and efficiently. You can use different types of crushers, such as screw juicers, rotary shaft machines, and auger systems. Each machine works best with certain fruits. For example, screw juicers handle fibrous fruits like oranges and pineapples very well. The auger system squeezes fruit and separates juice from pulp with high efficiency.
You can see how different crushing machines perform in the table below:

Fruit Extraction Efficiency (%) Extraction Capacity (L/h)
Orange 79.30 6.38
Cucumber 48.68 5.08
Pineapple 68.96 9.16
Golden Melon 56.41 7.84
Watermelon 56.52 10.48

Machines work best when you peel the fruit first. For example, peeled pineapples reach 96.9% extraction efficiency, while unpeeled ones drop to 83.6%. The auger system also keeps extraction loss low, usually under 3%.

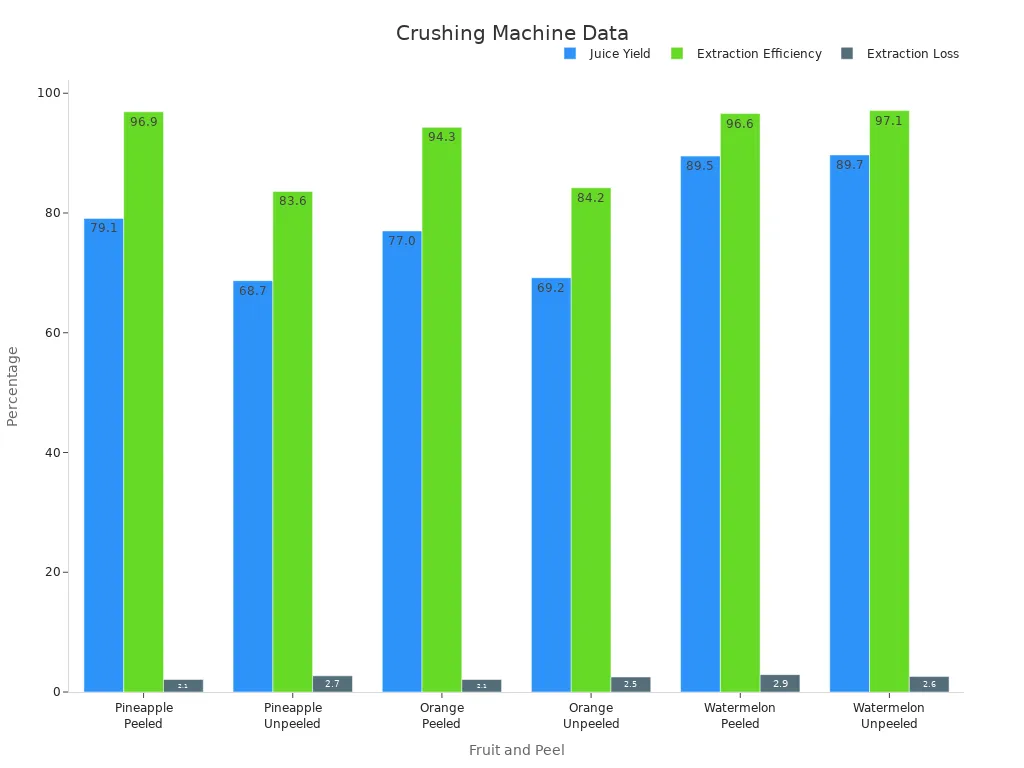

Fruit Juice Concentrate Machines(3)

Tip: Choose the right crushing machine for your fruit type. This helps you get more juice and less waste.

Extraction Process
After crushing, you move to the extraction process. The way you extract juice affects both yield and quality. Finer grinding and stronger pressing give you more juice and keep more nutrients. For example, a blender/press combination can increase carrot juice yield from 71.7% to 83.0%. This method also keeps more enzymes and vitamins in the juice.

Juicer Grinding Quality Grinding Rating Pressing Force Pressing Rating Inefficiencies Yield Efficiency
Green Star Chunky grind 1 star Hard pressing 3 stars Grinding stage Medium
Champion Fine grind 3 stars Soft pressing 2 stars Pressing stage Medium
NuWave Chunky grind 1 star Hard pressing 3 stars Grinding & pressing Low
LaLane Fine grind 3 stars Very soft pressing 1 star Pressing stage Lowest
Norwalk Fine grind 3 stars Hard pressing 4 stars Grinding & pressing High
Pure Juicer Finer grind 4 stars Hardest pressing 5 stars Grinding stage Higher
Blender/Press Homogenized (finest) 5 stars Hardest pressing 5 stars None Highest

You can also use new extraction methods to boost yield and protect nutrients:
Ultrasonication with enzymes increases juice yield and keeps heat-sensitive vitamins safe.
Enzymatic treatments with pectinase or naringinase improve juice quality and reduce bitterness.
Pulsed electric field treatment helps you get more juice and polyphenols from citrus fruits.
Ultrasonication works by breaking juice sacs open without raising the temperature, so nutrients stay intact.
You can use modeling tools like Response Surface Methodology to find the best extraction settings.
These steps help you get the most juice and keep it healthy and tasty.

Clarification & Filtration

Removing Solids
After you extract juice, you often see it looks cloudy or thick. This happens because natural substances like pectin, polysaccharides, and gums remain in the juice. These substances cause turbidity and make the juice less appealing. To improve clarity and taste, you need to remove these solids.
You can use enzymatic clarification to break down these unwanted components. Enzymes like pectinase work by cutting up pectin and other large molecules. For example:
Enzymatic clarification with pectinases can reduce turbidity in fruit juices by up to 59% compared to untreated juice.
Apple juice treated with special enzymes shows a 48.6% improvement in color, making it look brighter and more attractive.
When you use the right amount of enzyme, at the right temperature and pH, you can achieve up to 100% clarity in carrot juice and 88% clarity in apple juice.
Enzymatic treatment also helps maintain or even improve the juice’s color values without causing negative changes.
By removing these solids, you make the juice clearer and more appealing to consumers. You also help the juice flow better during later processing steps.
Tip: Always optimize enzyme loading, temperature, and time to get the best clarity and color in your juice.
Filtration Equipment
Once you break down the solids, you need to filter them out. Modern filtration equipment uses advanced membrane technology to separate the clear juice from the remaining particles. You can choose from microfiltration (MF), ultrafiltration (UF), nanofiltration (NF), and reverse osmosis (RO) systems.
Membrane filtration works gently at moderate temperatures, which helps keep nutrients and flavors in the juice.
Polymeric membranes, such as PVDF, are common because they offer high selectivity and resist fouling.
New microfiltration membranes with 0.2 micron pores improve capacity and reduce clogging, especially for dark juices.
Filtration steps like MF and UF not only clarify juice but also ensure microbiological safety.
Performance analysis shows that:
Membrane filtration can experience flux decline due to cake layer formation and concentration polarization.
The type of membrane and how you operate the system affect how quickly this decline happens.
Mathematical models help predict and manage fouling, making it easier to scale up production.
Pretreating juice and modifying membrane surfaces can reduce fouling and improve efficiency.
By using the right filtration equipment and process, you can produce juice that is clear, safe, and high in quality. This step is key for making juice concentrate that meets consumer expectations.

Fruit Juice Concentrate Machine Process

Fruit Juice Concentrate Machines(4)

Image Source: pexels

When you reach the core of juice concentration, you use advanced machines to remove water and thicken the juice. This step is where the Fruit Juice Concentrate Machine shows its true power. You can choose from several methods, but vacuum concentration stands out for its ability to protect nutrients and flavor.

Vacuum Concentration
Vacuum concentration forms the heart of most modern juice concentration lines. In this process, you place the juice inside a chamber and lower the air pressure. This change lets water boil off at much lower temperatures than normal. You avoid the high heat that can damage vitamins, color, and taste. The Fruit Juice Concentrate Machine uses vacuum evaporators to gently remove water, leaving behind a thick, nutrient-rich concentrate.
You benefit from vacuum concentration because it:
Preserves more vitamins and antioxidants.
Keeps the natural color and aroma of the juice.
Reduces energy use by boiling water at lower temperatures.
You can see these benefits in the growing juice market. Companies now use low-temperature evaporation, membrane filtration, and automation to boost efficiency and product quality. These innovations help you keep more nutrients in the juice and make the process more sustainable.
Note: Vacuum concentration works best for juices with normal viscosity. If you process thicker juices, you may need a different type of evaporator.
Multi-Effect Evaporators
When you want to save energy and process large amounts of juice, you turn to multi-effect evaporators. These machines connect several evaporation chambers in a series. Each chamber uses the steam from the previous one to heat the next batch of juice. This setup lets you reuse heat and cut down on steam costs.
You gain several advantages with multi-effect evaporators:
Lower energy use, which saves money.
Less heat exposure, which protects sensitive nutrients.
Higher production rates, so you can process more juice in less time.
You can also use thermal vapor recompression to recycle steam and further improve efficiency. The Fruit Juice Concentrate Machine often includes these features to help you balance energy use, product quality, and cost.
If you work with high-viscosity juices, such as mango or banana, you may need forced circulation evaporators. These machines use pumps to move thick juice through the system, preventing clogging and ensuring even concentration.

Evaporator Type Best For Key Benefit
Vacuum Evaporator Most fruit juices Preserves nutrients/flavor
Multi-Effect Evaporator Large-scale production Saves energy, high output
Forced Circulation High-viscosity juices Handles thick juices easily

Low-Temperature Processing
Low-temperature processing sets the Fruit Juice Concentrate Machine apart from older methods. By keeping temperatures low, you protect the juice from losing its healthy compounds. You also slow down the growth of microbes and reduce enzyme activity, which helps the juice stay fresh longer.
Scientific studies show that low-temperature treatments keep more vitamins and antioxidants in the juice. For example, vitamin C and B vitamins remain stable when you avoid high heat. Steaming and cold storage also help preserve the juice’s natural color and taste. Non-thermal technologies, such as membrane filtration and ultrasonication, offer even more protection for sensitive nutrients.
You can see the impact of these methods in the final product. The juice stays bright, flavorful, and packed with nutrients. You also get a longer shelf life and better safety.
Tip: Always choose a Fruit Juice Concentrate Machine with low-temperature processing if you want the best quality and nutrition in your juice.
Modern juice concentrate production relies on a mix of these technologies. You use vacuum concentration for gentle water removal, multi-effect evaporators for energy savings, and low-temperature processing to lock in nutrients. These steps work together to give you a high-quality, efficient, and sustainable juice concentrate process.

Quality & Packaging

Quality Control
You need strong quality control to make sure your juice concentrate meets high standards. Modern inspection systems use cameras, sensors, and digital monitoring to check every batch. You set clear product requirements for color, taste, and texture. Teams from suppliers, manufacturing, and quality control work together to keep standards high. You test juice under real conditions, like changes in temperature or humidity, to see how it holds up. You document any defects and track them over time. This helps you fix problems quickly and keep your product safe.
Set clear standards for color, size, and taste.
Work with your team to keep everyone on the same page.
Test juice in different conditions to spot weaknesses.
Record and sort defects by how serious they are.
Check quality often and use random tests to catch issues early.
Regular checks and teamwork help you deliver juice that is safe, tasty, and consistent.
Preservation
You want your juice concentrate to last as long as possible without losing quality. You use several proven methods to keep it fresh:
Pasteurization and flash pasteurization kill harmful microbes while keeping flavor and nutrients.
Freezing and drying stop bacteria and slow down spoilage.
Non-thermal methods like High-Pressure Processing (HPP), Pulsed Electric Fields (PEF), and High-Power Ultrasound (HPU) keep more vitamins and color than heat alone.
Hurdle technologies combine these methods for even better results.
Studies show that PEF and HPP help your juice keep its antioxidants and bright color. These methods also make sure your juice stays safe during storage.
Packaging
You protect your juice concentrate with smart packaging. Membrane filtration, such as ultrafiltration and reverse osmosis, helps you keep flavor and nutrients by avoiding high heat. Aseptic packaging keeps out germs and air, so your juice lasts longer. New packaging materials and digital monitoring help you track quality and safety from the factory to the store.

Packaging Method Benefit
Ultrafiltration Keeps flavor and nutrients
Reverse Osmosis Lowers energy use, preserves quality
Aseptic Packaging Extends shelf life, blocks contamination
Digital Monitoring Tracks quality and safety

You see these advances in many countries, where better packaging and transport help juice reach more markets with less waste. The Fruit Juice Concentrate Machine works best when you combine these modern packaging and preservation steps.

You have seen how each step, from fruit selection to packaging, shapes the quality of juice concentrate. The Fruit Juice Concentrate Machine uses advanced methods like vacuum concentration to remove water gently. This process helps you keep more flavor and nutrients in your juice. When you use these machines, you get a product that is both efficient and high in quality. Take a moment to appreciate the technology that brings fresh-tasting juice to your table.

FAQ

How does a vacuum evaporator work in juice concentration?
A vacuum evaporator lowers air pressure inside the machine. Water in the juice boils at a lower temperature. You remove water gently, which helps keep vitamins and flavor in your juice.
Can you use any fruit in a juice concentrate machine?
You can use many fruits, but some work better than others. Choose fruits with high juice yield and strong flavor. Apples, oranges, and pomegranates give you the best results.
Does juice concentration remove nutrients?
You keep most nutrients when you use low-temperature or vacuum methods. High heat can destroy some vitamins. Modern machines help you protect antioxidants and natural color.
What is the difference between single-effect and multi-effect evaporators?
Single-effect evaporators use one chamber to remove water. Multi-effect evaporators use several chambers in a row. You save more energy and process more juice with multi-effect systems.
